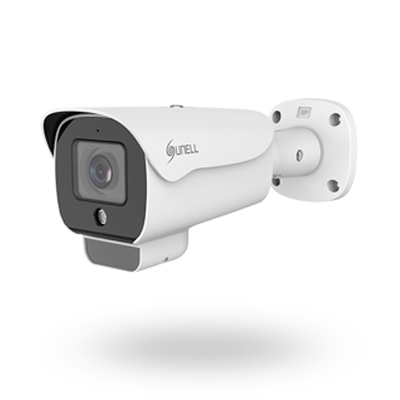

1/2.8” progressive scan CMOS
Max. 8MP(3840×2160) @25/30fps resolution
2.7~13.5mm motorized lens
WDR, 3D DNR, ROI, HLC, BLC, Defog
Support face, human, vehicle detection and capture
Intelligent detection: intrusion, single line crossing, double line crossing, loitering, wrong way, people counting
1/1 audio in/out, 1/1 alarm in/out
Built-in microphone and speaker
Support strobe light and audio alarm to warn intruders off
Smart IR up to 40m
Built-in micro SD slot, IP66, PoE
| Camera | |
Image Sensor | 1/2.8”Progressive Scan CMOS |
Max. Resolution | 8MP (3840×2160) |
Electronic Shutter | Auto/Manual, 1/5 ~ 1/20,000s |
Min. illumination | Color: 0.01 Lux @ (F1.6, AGC ON), B/W: 0 Lux @ (IR LED ON) |
Day & Night | IR cut filter |
IR Distance | Up to 40 m (131.2 ft) |
IR On/Off Control | Auto/Manual |
Pan/Tilt/Rotation Range | Pan: 0˚ ~ 360˚, Tilt: 0˚ ~ 90˚, Rotation: 0˚ ~ 360˚ |
Lens | |
Lens Type | Motorized focus |
Iris | Fixed Iris |
Focal Length | 2.7 ~ 13.5 mm |
F Number | F1.6 |
Angle of View | H: 98.1°~30.9°, V: 52.6°~17.3° |
Video | |
Streaming Capability | 3 Streams |
Stream/Frame Rate | Stream1: 3840×2160, 2592×1944, 2592×1520, 2560×1440, 2304×1296, 1920×1080, 1280×720 @ 25/30fps Stream2: D1, VGA, CIF @ 25/30fps Stream3: VGA, CIF, QVGA @ 25/30fps |
Bit Rate Control | CBR/VBR |
Bit Rate | Stream1: 200kbps~16Mbps Stream2: 100kbps~6Mbps Stream3: 100kbps~3Mbps |
Region of Interest | Off/On (8 Zone, Rectangle) |
Smart Encode | Support |
Image | |
Image Adjustment | Brightness, Sharpness, Contrast, Saturation adjustable |
Aisle Mode | Support |
Mirror | Support |
White Balance | Auto/Manual |
Day/Night Setting | Auto, Day, Night, Time |
Smart IR | Support |
Noise Reduction | 2D/3D DNR |
Image Enhancement | HLC, BLC, Defog |
Wide Dynamic Range | True WDR |
S/N Ratio | 55dB |
Motion Detection | Support |
Privacy Masking | Support |
Smart Function | |
Multi-Object Detection | Supports face, human, vehicle detection and capture |
Smart Events | Intrusion, Single line crossing, Double line crossing, Loitering, Wrong way, People counting Support alarm triggering by specified target types (human and vehicle) |
Smart Alarm | When an alarm is triggered, active strobe light and audible alarm to warn intruders |
Audio | |
Compression | G.711, RAW_PCM |
Bit Rate | 8kbps, 16kps, 64kbps |
Network | |
Protocols | IPv4/IPv6, 802.1x, HTTP, HTTPS, TCP/IP, UDP/IP, RTSP, DHCP, NTP, RTCP/RTP, PPPoE, SMTP, DNS, UPnP, FTP, ARP, SNMP, TLS/SSL |
Interoperability | ONVIF, SDK, CGI |
Streaming Method | Unicast |
Max. User Access | 10 Users |
Web Viewer | <IE11, Chrome, Firefox, Microsoft Edge |
Language | English, Chinese, Polish, Italian, Portuguese, Spanish, Russian, French, Czech, Hungarian. Default: English |
Interface | |
Network Interface | 1 Ethernet (10/100 Base-T) RJ-45 Connector |
Audio Interface | 1ch Input, 1ch Output |
Built-in Microphone | Yes |
Built-in Speaker | Yes |
Alarm Interface | 1ch Input, 1ch Output |
Reset Button | Support |
SD Card slot | Built-in, up to 256GB |
Electrical | |
Power Supply | DC12V (-15%~+25%)/POE (IEEE 802.3af) |
Power Consumption | Max 11 W |
Operating Temperature | -40°C ~ 55°C (-40°F ~ 131°F ) |
Operating Humidity | Less than 90% RH |
Ingress Protection | IP66 |
Certifications | CE/FCC |
Casing | Metal |
Dimensions | 264.5 × 82.7 × 80.3 mm (10.41" × 3.56" × 3.16") |
Net Weight | 0.83 kg (1.83 lb) |
