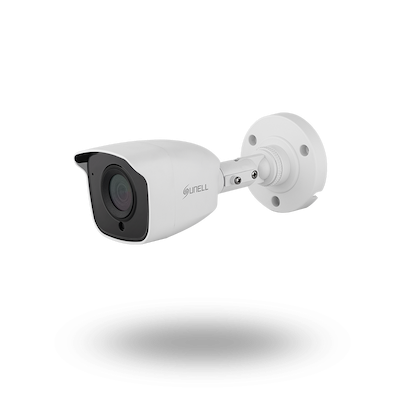

8MP Hybrid HD Analog Bullet Camera

SN-B1318CW-R-CB
  • 1/3" Progressive Scan CMOS

  • 2.8mm/3.6mm fixed lens optional

  • Max 15fps@8MP

  • Video transmission 300m

  • IR distance up to 20m

  • 2D DNR, DWDR, ICR, BLC, ATW

  • Support TVI/ AHD/CVI/CVBS Output

  • 11 languages

  • IP66

Specification

Camera

Image Sensor

1/3" Progressive Scan CMOS

Signal System

PAL/NTSC

Electronic Shutter

Auto

Min. illumination

Color: 0.02Lux@(F1.2,AGC ON) ; B/W: 0Lux@(IR LED ON)

S/N Ratio

More than 48dB

IR Distance

up to 20m

IR On/Off Control

Auto/Manual

IR LEDs

18pcs

OSD Joystick

Optional

Up the Coax

Support

Pan/Tilt/Rotation Range

Pan:0˚~360˚; Tilt:0˚~90˚; Rotation:0˚~360˚

Language

ENGLISH, 中文, ESPANOL, FRANCAIS, 繁体中文, PYCCKNN, ITALIANO, JAPANESE, KOREAN, POLSKI, PROTUGUES

Lens

Lens Type

Fixed

Iris

Fixed Iris

Focal Length

2.8mm

3.6mm

F Number

F2.2

F2.2

Angle of View

H: 89.2°,  V: 48.9°

H: 74.3°,  V: 40.9°

Video

Resolution

8MP (3840×2160)

Frame Rate

TVI/AHD/CVI: 8MP 15fps/12.5fps,

AHD/TVI: 5MP 20fps/12.5fps, 4MP 25fps/30fps/15fps, 1080P 25fps/30fps

CVI: 4MP 25fps/30fps

CVBS: PAL/NTSC

Video Output

Support TVI/AHD/CVI/CVBS output

Day/Night

Auto / Color / B/W/ Ext

OSD Menu

Support

Wide Dynamic Range

DWDR, OFF/ON

Gain Control

Auto

Noise Reduction

2D DNR, AUTO/MANUAL (0-10)

White Balance

Auto

BLC

Support

General

Power Supply

DC12V±10%

Power Consumption

Max. 4W (12V DC, IR ON)

Operating Temperature

-10 °C ~ 55 °C (14°F ~ 131 °F)

Operating Humidity

Less than 85% RH

Ingress Protection

IP66

Certifications

CE/FCC

Casing

ABS

Dimensions

162×58mm (6.38"×2.28")

Net Weight

0.16 kg (0.35 lb)


Dimensions


Dimensions of SN-B1318CW-R-CB
