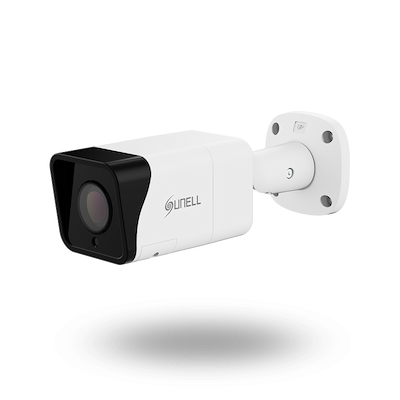

2MP WDR Hybrid HD Analogue Bullet Camera

SN-B1322BZ-R-EM
  • 1/2.8" Progressive Scan CMOS

  • 2.8~12mm manual lens

  • Max 30fps@1080P

  • Video Transmission 300m

  • IR distance up to 40m

  • 3D DNR, WDR, ICR, BLC, GLOBAL

  • Support AHD/TVI/CVI/CVBS Output

  • IP67

Specification

Camera

Image Sensor

1/2.8” Progressive Scan CMOS

Signal System

PAL/NTSC

Electronic Shutter

Auto, PAL:1/25-1/10000s, NTSC:1/30-1/10000s

Min. illumination

Color: 0.001 Lux @ (F1.2, AGC ON), B/W: 0 Lux @ (IR LED ON)

S/N Ratio

More than 50dB

IR Distance

Up to 40 m (131.2 ft)

IR LEDs

4 pcs

OSD Joystick

Support

Up the Coax

Support

Pan/Tilt/Rotation Range

Pan:0˚~360˚, Tilt:0˚~90˚, Rotation:0˚~360˚

Lens

Lens Type

Manual focus

Iris

Fixed Iris

Focal Length

2.8 ~ 12mm

F Number

F1.6

Angle of View

H: 110°~39.3°, V: 60.5°~23.1°

Video

Resolution

1080P (1920×1080)

Frame Rate

PAL:25fps ,NTSC:30fps

Video Output

Support AHD/TVI/CVI/CVBS Output

Day/Night

Auto / Color / B&W / Ext

OSD Menu

Support

Wide Dynamic Range

WDR, EXT/OPEN/CLOSE

Gain Control

Auto

Noise Reduction

3D DNR, AUTO/MANUAL(0-30)

White Balance

Auto

BLC

Support

General

Power Supply

DC12V ±10%

Power Consumption

Max. 4.5W (12V DC, IR ON)

Operating Temperature

-10 °C ~ 55 °C (14°F ~ 131 °F)

Operating Humidity

Less than 85% RH

Ingress Protection

IP67

Certifications

CE/FCC

Casing

Metal

Dimensions

232 × 80 × 80mm (9.13" × 3.15" × 3.15")

Net Weight

0.65 kg (1.43 lb)


Dimensions(mm)
