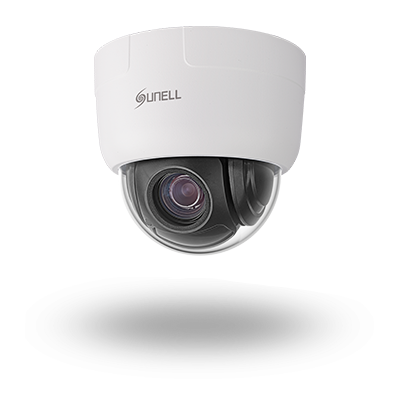

4-inch 4MP 12x Mini PTZ Network Camera

SN-IPS5940ELDN-Z12
  • 1/2.8" progressive scan CMOS

  • 12x optical zoom,16x digital zoom

  • Max resolution 4MP(2592×1520) @ 25/30fps

  • Multiple streams

  • 3D DNR, WDR, ICR, IVS, Defog

  • Auto tracking

  • IP66, IK10

Specification of 4-inch 4MP 12x Mini PTZ Network Camera

Camera

Image Sensor

1/2.8” Progressive Scan CMOS

Electronic Shutter

Auto/Manual, 1/5 ~ 1/20,000s

Min. illumination

Color: 0.01 Lux @ (F1.6, AGC ON),

B/W: 0.001 Lux @ (F1.6, AGC ON)

S/N Ratio

55 dB

Day/Night

Auto(ICR)/Day / Night/Timing

Wide Dynamic Range

WDR 120 dB

IR Range

N/A

IR On/Off Control

N/A

Lens

Focal Length

4.7 ~ 56.4 mm

Max. Aperture

F1.6 ~ F3.0

Angle of View

H: 60.9°~6.43°, V: 40.1°~4.1°

Optical Zoom

12x

Digital Zoom

16x

Focus Control

Auto/Manual

PTZ

Pan/Tilt Range

Pan: 0° ~ 360° endless, Tilt: 0° ~ +90°

Manual Control Speed

Pan: 0.1° ~ 200°/s, Tilt: 0.1° ~ 160°/s

Preset Speed

Pan: 200°/s, Tilt: 160°/s

Presets

300

PTZ Mode

6 Track, 12 Scan, 12 Tour (up to 32 presets per tour)

3D Positioning

Support

Power-Off Memory

Support

PTZ Status Display

Support

Idle Motion

Activate Preset/ Scan/ Tour/ Track if there is no command in the specified period

Video

Max Resolution

2592(H) x 1520(V)

Streaming Capability

3 Streams

Stream/Frame Rate

Stream1: 2592×1520/2560×1440/2304×1296/

1920×1080/1280×720 @ 25/30fps

Stream2: D1/VGA/640×360/CIF/QVGA @ 25/30fps

Stream3: VGA/CIF/QVGA @ 25/30fps

Bit Rate Control

CBR/VBR

Bit Rate

Stream1: 200kbps~12Mbps

Stream2: 100kbps~6Mbps

Stream3: 100kbps~3Mbps

Image Enhancement

HLC/BLC/Anti-shake/Defog /WDR

Noise Reduction

2D/3D DNR

Region of Interest

Off/On (8 Zone, Rectangle)

Motion Detection

Support

Privacy Masking

Support

Intelligence

Auto Tracking

Support

IVS

Perimeter, Single Virtual Fence, Double Virtual Fences, Loiter, Multi Loiter, Object Left, Object Removed, Abnormal Speed, Converse, Illegal Parking

Network

Protocols

IPv4/IPv6, 802.1x, HTTP, HTTPS, TCP/IP, UDP/IP, RTSP, DHCP, NTP, RTCP/RTP, PPPoE, SMTP, DNS, UPnP, FTP, ARP, SNMP

Interoperability

ONVIF, SDK, CGI

Streaming Method

Unicast

Max. User Access

10 Users

Edge Storage

Local PC for instant recording

Web Viewer

<IE11, Chrome, Firefox, Microsoft Edge

Management Software

SunView

Interface

Ethernet

1 Ethernet (10/100 Base-T) RJ-45 Connector

Audio

-

Alarm

-

RS485

-

CVBS Output

-

Reset Button

Yes (Built-in)

Electrical

Power Supply

DC12V/POE (IEEE 802.af)

Power Consumption

Less than 6 W

Operating Temperature

-30°C ~ 60°C (-22°F ~ 140 °F)

Operating Humidity

Less than 90% RH

Ingress Protection

IP66, IK10,  TVS4000V

Certifications

CE/FCC

Dimensions

φ143.9×130.6mm (φ5.67×5.14 inch)

Net Weight

1.15kg



Dimensions of 4-inch 4MP 12x Mini PTZ Network Camera
