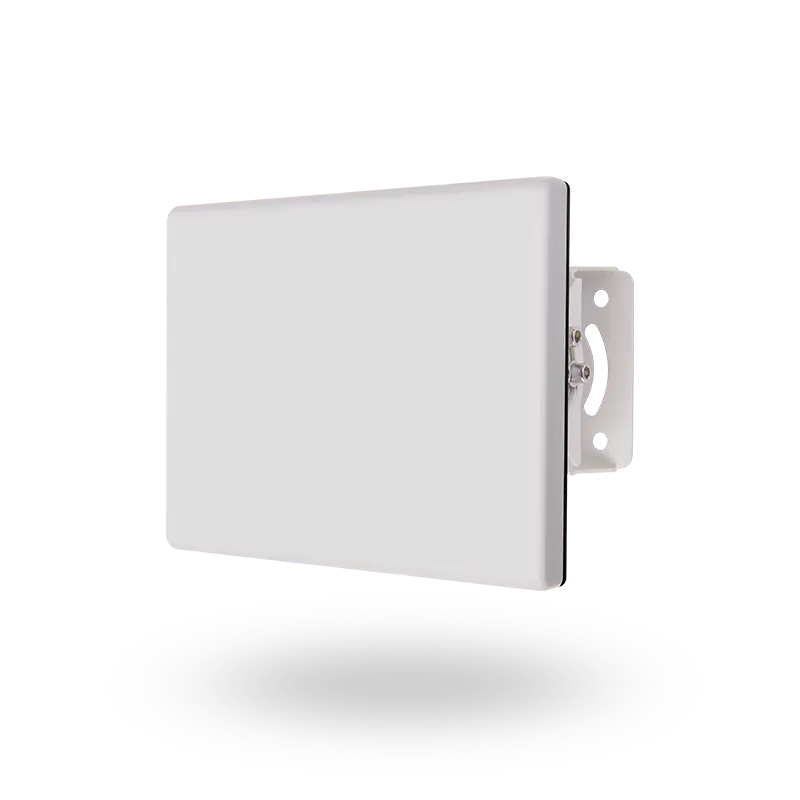

Wide Area Detection Radar

SN-SMWR03A

Specification

Radar Characteristics

Radar Sensor

FMCW Radar

Radar Output Data

Distance, direction, angle

Transmit Frequency

24.00~24.1GHz

Refresh Rate

8Hz

EIRP

39dBm

Power Consumption

17W

Detection Performance

Target Identification

People, Vehicles

Recognition Pattern

Radar triggers an alarm, linkage video review

Detection Range (Pedestrian)

1.5~450m

Detection Range (vehicle)

1~600m

Detection Accuracy

±0.75m

Detection Resolution

1.5m @human, 6m @ship

Speed Range

0.5m/s~30m/s

Speed Accuracy

0.006m/s

Speed Resolution

0.003m/s

Angle Accuracy

±1°

FOV

Azimuth:90°;Elevation:13°

Hardware Characteristics

Communication Protocol

UDP, TCP

Network Interface

1 RJ45 10M/100M (PoE)

RS485

Support

Physical Characteristics

Power Supply

12VDC/PoE (IEEE802.3af)

Working Temperature

-40~75℃

Storage Temperature

-40~85℃

Weight

1.0kg

Dimension

235×175×47.5mm

Protection Class

IP66



Dimensions (mm)
