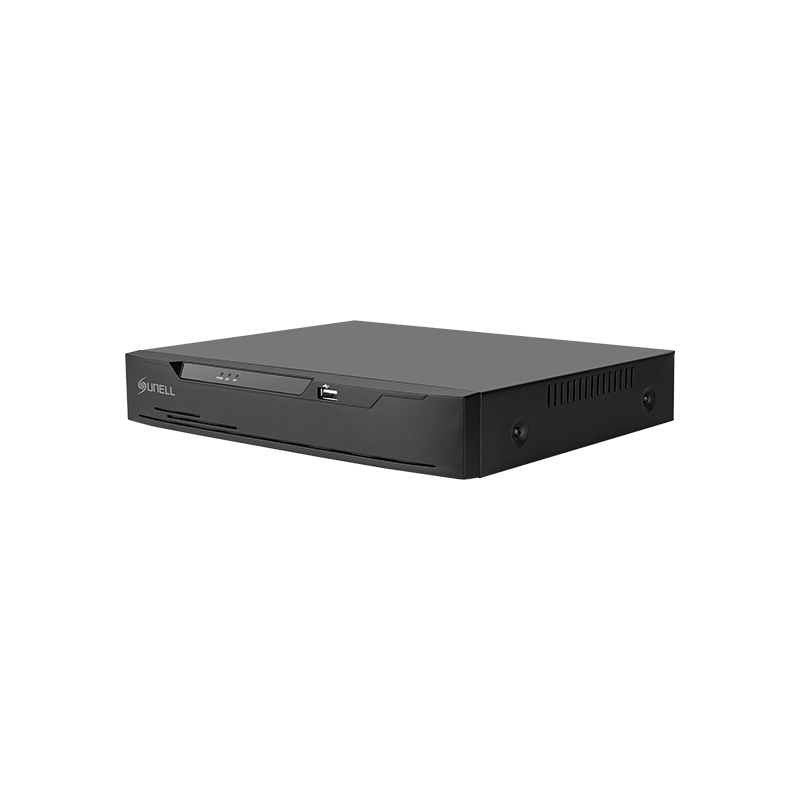

SN-ADR3708E1 (II)

1080P 8CH 1HDD DVR hybride

Prend en charge les entrées vidéo AHD, TVI, CVI, CVBS, IP

Max. 10 canaux d’entrées de caméra IP, chaque canal jusqu’à 1080P

Capacité d’encodage jusqu’à 1080P @ 7 fps

Prise en charge des sorties HDMI et VGA

Audio via câble coaxial

Recherche et lecture intelligentes

Prise en charge de plusieurs langues

Video and Audio
Analog Video Input	8-ch BNC interface, Supports coaxial control
AHD Input	1080P, 720P
TVI Input	1080P, 720P
CVI Input	1080P, 720P
CVBS Input	PAL/NTSC
IP Video Input	2-ch (only IP up to 10-ch), each channel up to 1080P
HDMI Output	1920 × 1080, 1280 × 1024, 1024 × 768
VGA Output	1920 × 1080, 1280 × 1024, 1024 × 768
Audio Input	1-ch RCA, 8-ch via coaxial cable
Audio Output	1-ch RCA
Two-way Audio	Supported via RCA and Network (Half-Duplex Intercom)
Recording
Encoding Resolution	1080P, 720P, 960H, D1, CIF
Frame Rate	1080P @ 7 fps
Video Bit Rate	Main stream: 16 Kbps to 2048 Kbps, Sub stream: 16 Kbps to 1024 Kbps
Dual Stream	Support
Audio Compression	G.711
Playback and Backup
Recording Mode	Manual, Alarm, Motion detection, Timing
Recording Playback	16/9/4/1
Search Mode	Time /Date, Alarm, Picture grid, Event
Backup Mode	USB Device, Network
Network
Protocols	HTTP, HTTPS, TCP/IP, IPv4, IPv6, UPnP, UDP, RTSP, SMTP, NTP, DNS, DHCP, P2P, IP Filter, DDNS, 802.1X, SNMP
Remote Users	4
Smart Phone	iPhone, iPad, Android
Interoperability	ONVIF, SDK, CGI
Storage
HDD	1 SATA interfaces
Capacity	Up to 4TB capacity for each disk
Interface
Network Interface	1 RJ45 10M/100M self-adaptive Ethernet Interface
Alarm In/Out	N/A
USB Interface	3 ports (1 front USB 2.0 port, 2 rear USB 2.0 port)
General
Power Supply	12 VDC/2A
Power Consumption	Max 15W (without HDD)
Working Temperature	-10 °C to 50 °C (14 °F to 122 °F)
Working Humidity	Less than 90% RH
Certifications	CE-EMC - EN 55032, EN IEC 61000-3-2, EN 61000-3-3, EN 55035 CE-LVD - EN IEC 62368-1 FCC 47 CFR Part 15 Subpart B
Dimensions (W×D×H)	255 × 225 × 45 mm (10.04 × 8.86 × 1.77 inch)
Net Weight	0.7 kg (1.54 lb) without HDD
