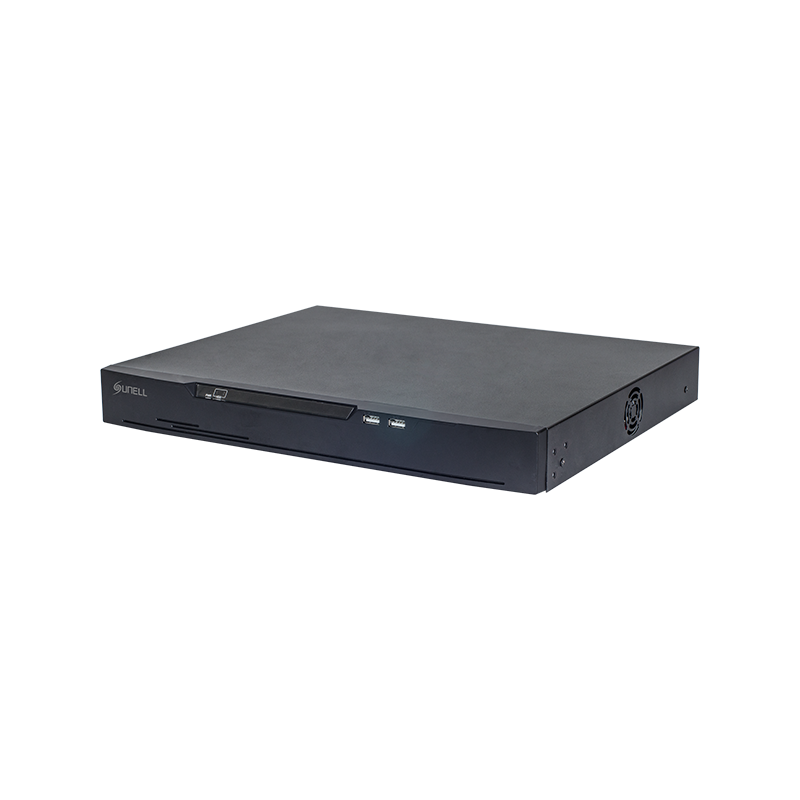

SN-XVR3816E2

DVR hybride 5MP 16CH 2HDD

Prend en charge les entrées vidéo AHD, TVI, CVI, CVBS, IP

Max. 24 canaux d’entrées de caméra IP, chaque canal jusqu’à 1080P

Protection périmétrique du flux vidéo jusqu’à 4 canaux

Capacité d’encodage jusqu’à 4K-N @ 8 fps, 5MP @ 7 fps, 4MP @ 8 fps, 1080P @ 15 fps

Prise en charge d’une sortie CVBS 1 canal, d’une sortie VGA 1 canal, d’une sortie HDMI 1 canal jusqu’à 4K (3840 x 2160)

Prise en charge des sorties simultanées CVBS, VGA et HDMI

Recherche et lecture intelligentes

Prise en charge de plusieurs langues

Video and Audio
Analog Video Input	16-ch BNC interface, Supports coaxial control
AHD Input	8MP, 5MP, 4MP, 1080P, 720P
TVI Input	8MP, 5MP, 4MP, 1080P, 720P
CVI Input	8MP, 5MP, 4MP, 1080P, 720P
CVBS Input	PAL/NTSC
IP Video Input	8-ch (only IP up to 24-ch), each channel up to 1080P
HDMI Output	3840 × 2160, 1920 × 1080, 1280 × 1024, 1024 × 768
VGA Output	1920 × 1080, 1280 × 1024, 1024 × 768
CVBS Output	PAL/NTSC
Audio Input	8-ch, RCA
Audio Output	1-ch, RCA
Two-way Audio	Supported via RCA (Analog Input/Output)
Perimeter Protection
Intrusion Detection	4-ch, support accurate detection of human and vehicle
Recording
Encoding Resolution	4K-N, 5MP, 4MP, 1080P, 720P, 960H, D1, CIF
Frame Rate	4K-N @ 8fps, 5MP @ 7fps, 4MP @ 8fps, 1080P @ 15fps, 720P @ 30fps
Video Bit Rate	Main stream: 16 Kbps to 4096 Kbps, Sub stream: 16 Kbps to 1024 Kbps
Dual Stream	Support
Audio Compression	G.711
Playback and Backup
Recording Mode	Manual, Alarm, Motion detection, Timing
Recording Playback	16/9/4/1
Search Mode	Time /Date, Alarm, Picture grid, Event
Backup Mode	USB Device, Network
Network
Protocols	HTTP, HTTPS, TCP/IP, IPv4, IPv6, UPnP, UDP, RTSP, SMTP, NTP, DNS, DHCP, P2P, IP Filter, DDNS, 802.1X, SNMP
Remote Users	4
Smart Phone	iPhone, iPad, Android
Interoperability	ONVIF, SDK, CGI
Storage
HDD	2 SATA interface
Capacity	Up to 8TB for each disk
Disk Group	Support
Interface
Network Interface	2 RJ45 10M/100M/1000M self-adaptive Ethernet Interface
Alarm In/Out	8/1
RS-485	1
USB Interface	3 ports (2 front USB 2.0 port, 1 rear USB 2.0 port)
General
Power Supply	12 VDC/3A
Power Consumption	Max 15W (without HDD)
Working Temperature	-10 °C to 50 °C (14 °F to 122 °F)
Working Humidity	Less than 90% RH
Certifications	CE-EMC - EN 55032, EN IEC 61000-3-2, EN 61000-3-3, EN 55035 CE-LVD - EN IEC 62368-1 FCC 47 CFR Part 15 Subpart B
Dimensions (W×D×H)	372 x 317.4 x 46.4 mm (1465 × 12.5 × 1.83 inch)
Net Weight	Approx. 1.92 kg (4.23 lb without HDD)
