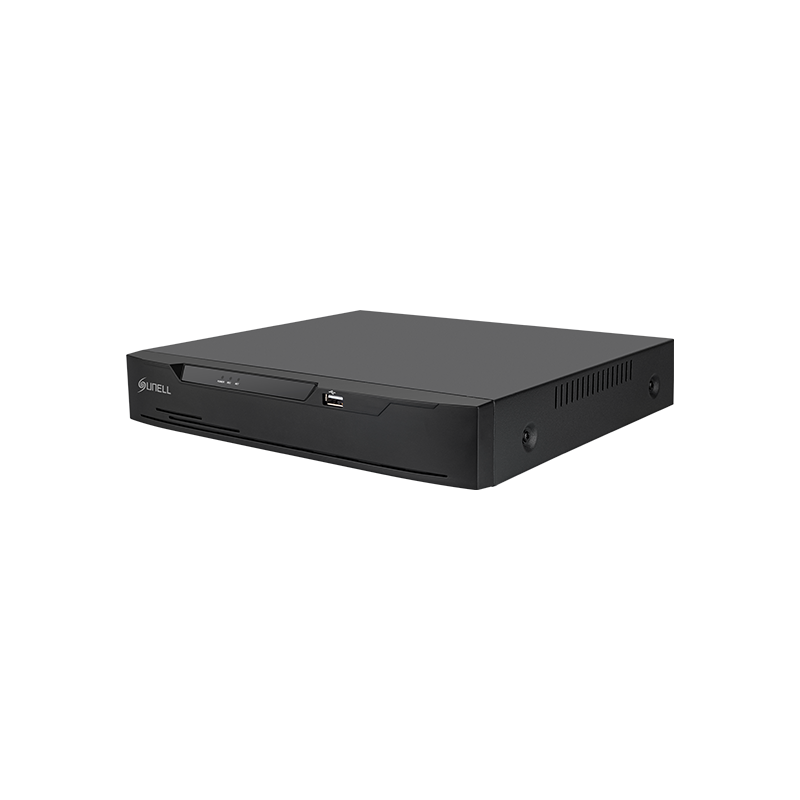

SN-ADR3908E1 (II)

DVR ibrido 4K 1HDD a 8 canali

Supporta gli ingressi video AHD/TVI/CVI/CVBS/IP

È possibile collegare fino a 12 telecamere IP a 12 canali, ogni canale fino a 5 MP

Capacità di codifica fino a 8 MP @ 7 fps

Protezione perimetrale del flusso video fino a 8 canali (canale analogico)

Rilevamento delle intrusioni basato sul deep learning per il rilevamento di persone e veicoli

Supporta l'audio coassiale a 8 canali

Supporta l'uscita VGA a 1 canale, l'uscita HDMI a 1 canale fino a 4K (3840 x 2160)

Uscita simultanea HDMI e VGA

Supporta più lingue

Video and Audio
Analog Video Input	8-ch BNC interface, Supports coaxial control
AHD Input	8MP, 5MP, 4MP, 3MP, 1080P, 720P
TVI Input	8MP, 5MP, 4MP, 3MP, 1080P, 720P
CVI Input	8MP, 5MP, 4MP, 3MP, 1080P, 720P
CVBS Input	PAL/NTSC
IP Video Input	4-ch (only IP up to 12ch), each channel up to 5MP
HDMI Output	3840 × 2160, 1920 × 1080, 1280 × 1024,1024 × 768
VGA Output	1920 × 1080, 1280 × 1024,1024 × 768
CVBS Output	N/A
Audio Input	4-ch, 8-ch via coaxial cable
Audio Output	1-ch
Two-way Audio	Supported via RCA and Network (Half-Duplex Intercom)
Perimeter Protection
Intrusion Detection	8-ch, Support accurate detection of human and vehicle
Recording
Resolution	8MP, 5MP, 4MP, 3MP, 1080P, 720P, D1 etc.
Frame Rate	8MP@7fps, 5MP@12fps, 4MP@15fps, 1080P@25/30fps
Video Bit Rate	Main stream: 128 Kbps to 6144 Kbps, Sub stream: 16 Kbps to 1024 Kbps
Dual Stream	Support
Audio Compression	G.711
Playback and Backup
Recording Mode	Manual, Alarm, Motion detection, Timing
Recording Playback	8/4/1
Search Mode	Time /Date, Alarm, Picture grid, Event
Backup Mode	USB Device, Network
Network
Network Function	HTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, UDP, RTSP, SMTP, NTP, DNS, DHCP, P2P, IP Filter, DDNS, 802.1X, SNMP
Remote Users	4 users
Smart Phone	iPhone, iPad, Android
Interoperability	ONVIF, SDK, CGI
Storage
HDD	1 SATA interface
Capacity	Up to 8TB for each disk
Interface
Network Interface	1 RJ-45 (10/100 Mbps) self-adaptive Ethernet port
USB	Front panel: 1 × USB 2.0, Rear panel: 2 × USB 2.0
Alarm In/Out	-/-
RS-485	Support
General
Power Supply	12 VDC/2A
Power Consumption	< 15 W (without HDD)
Operating Conditions	-10 °C to 50 °C (14 °F to 122 °F)
Storage Conditions	Less than 90% RH
Certifications	CE-EMC - EN 55032, EN IEC 61000-3-2, EN 61000-3-3, EN 55035 CE-LVD - EN IEC 62368-1 FCC 47 CFR Part 15 Subpart B
Dimensions	255 × 244 × 45 mm (10.04 × 9.6 × 1.77 inch)
Net Weight	0.84 kg (1.85 lb) without HDD
