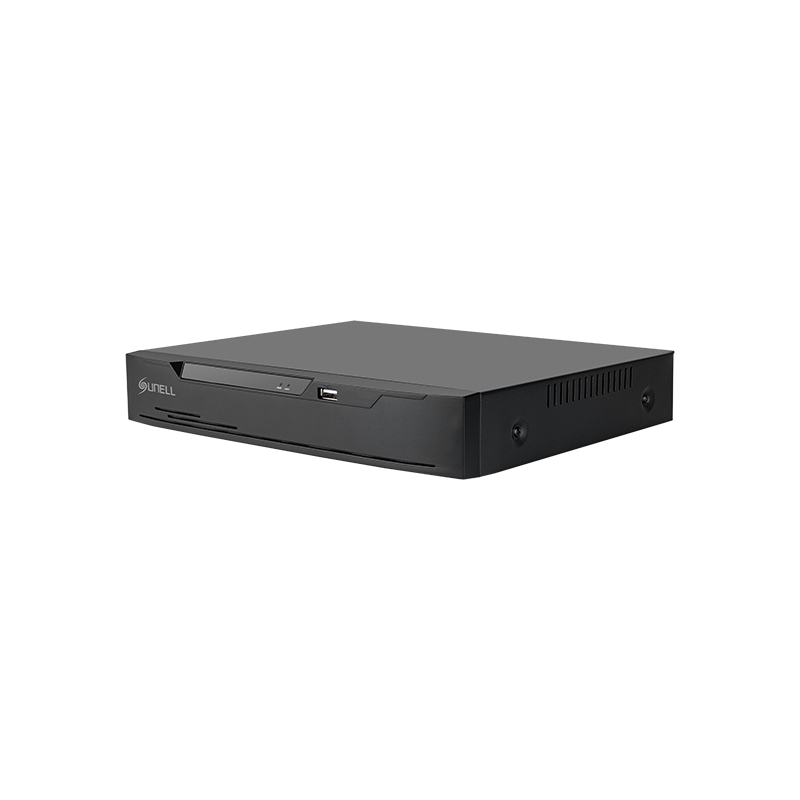

SN-XVR3904E1-J

DVR ibrido 4 canali 4K 1HDD

Ingressi video multiformato (AHD, TVI, CVI, CVBS e IP)
Fino a 6 ingressi per telecamere IP, fino a 5MP per canale
Fino a 8MP @ 7 fps di registrazione
Protezione perimetrale a 4 canali basata su deep learning
Uscita video simultanea HDMI e VGA
Audio su cavo coassiale
Ricerca intelligente e riproduzione
Più lingue
Disciplinare
Scarica

Video & Audio

Analog Video Input

4 × BNC (supports UTC coaxial control)

AHD Input

8MP, 5MP, 4MP, 1080P, 720P

TVI Input

8MP, 5MP, 4MP, 1080P, 720P

CVI Input

8MP, 5MP, 4MP, 1080P, 720P

CVBS Input

PAL / NTSC

IP Video Input

2-ch (up to 6-ch in IP mode), up to 5MP per channel

Audio Input

1 × RCA; up to 4-ch audio over coaxial cable (TVI only)

Audio Output

1 × RCA

Two-way Audio

Supported via RCA and network (half-duplex intercom)

Audio Compression

G.711A / G.711U

Recording

Recording Resolution

8MP, 5MP, 4MP, 1080P, 720P, D1

Recording Frame Rate

8MP @ 7 fps, 5MP @ 12 fps, 4MP @ 15 fps, 1080P @ 25/30 fps

Video Bit Rate

Main stream: 128 Kbps to 6144 Kbps; Sub stream: 16 Kbps to 1024 Kbps

Dual Stream

Supported

Recording Mode

Manual, Scheduled, Event

Perimeter Protection

Intrusion Detection

4-ch, supports selectable target types (human, vehicle, or both)

Event

Event Trigger

Motion Detection, Video Loss, Video Tampering, Alarm Input, Exception

Event Linkage

Recording, Email, Buzzer, PTZ, Alarm Output, Push Notification

Display

Decoding Capability

1-ch @ 4K, 6-ch @ D1

HDMI Output

3840 × 2160, 1920 × 1080, 1280 × 1024, 1024 × 768

VGA Output

1920 × 1080, 1280 × 1024, 1024 × 768

CVBS Output

1 × BNC

Video Output Mode

Simultaneous HDMI, VGA, and CVBS outputs

Display Layouts

1/4/6

Playback & Backup

Simultaneous Playback

6-ch / 4-ch / 1-ch

Search Mode

Date/Time, Alarm, Picture, Event

Playback Control

Play, Pause, Fast Forward, Rewind, Slow Playback, Digital Zoom

Backup Mode

USB Device, Network

Network

Network Interface

1 × RJ45, 10/100 Mbps self-adaptive Ethernet port

Protocols

HTTP, HTTPS, TCP/IP, IPv4, IPv6, UDP, RTSP, SMTP, NTP, DNS, DHCP, UPnP, DDNS, P2P, IP Filter, IEEE 802.1X, SNMP

Remote Users

Up to 4 users

Mobile Client

iOS, Android

Interoperability

ONVIF, SDK, CGI

Storage

HDD Interface

1 × SATA interface

HDD Capacity

Up to 8 TB per HDD

Interface

USB Interface

2 × USB 2.0 ports (1 front, 1 rear)

Alarm Input

4

Alarm Output

1

RS-485

1

Reset Button

On-board reset button

General

Power Supply

12 VDC, 2 A

Power Consumption

≤ 10 W (without HDD)

Operating Temperature

-10 °C to 50 °C (14 °F to 122 °F)

Operating Humidity

≤90% RH (Non-condensing)

Certifications

CE-EMC: EN 55032, EN IEC 61000-3-2, EN 61000-3-3, EN 55035
CE-LVD: EN IEC 62368-1
FCC: 47 CFR Part 15, Subpart B

Dimensions

254.5 × 231.9 × 43.9 mm (10.02 × 9.13 × 1.73 inch)

Net Weight

Approx. 0.72 kg (1.59 lb) without HDD
