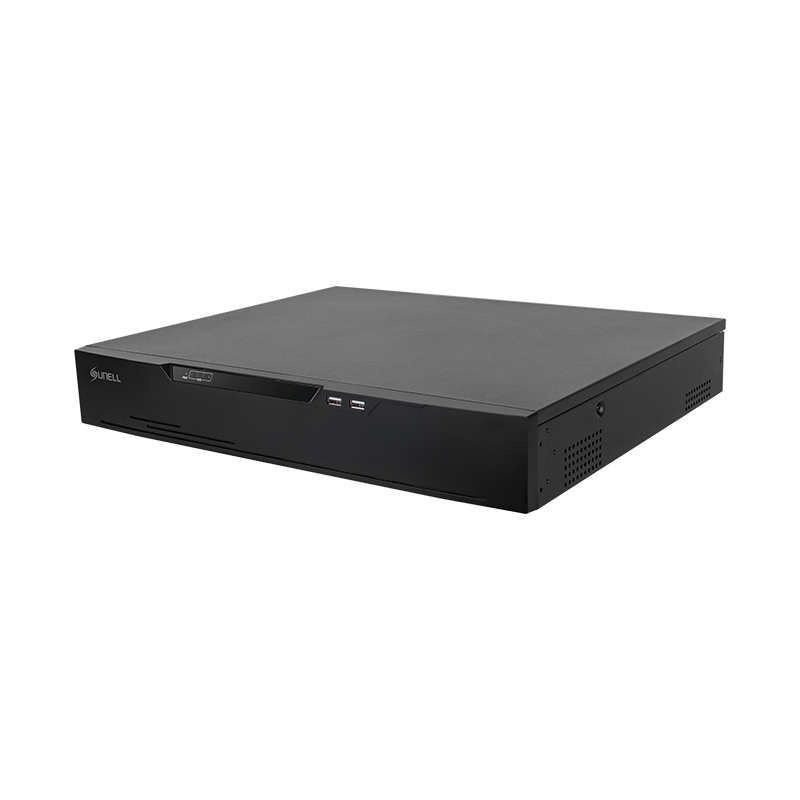

SN-XVR3916E4-J

DVR ibrido 16 canali 4K 4HDD

Ingressi video multiformato (AHD, TVI, CVI, CVBS e IP)
Fino a 32 ingressi per telecamere IP, fino a 1080P per canale
Fino a 8MP @ 7 fps di registrazione
Protezione perimetrale a 16 canali basata su deep learning
Uscita video simultanea HDMI e VGA
Audio su cavo coassiale
Ricerca intelligente e riproduzione
Più lingue
Disciplinare
Scarica

Video & Audio

Analog Video Input

16 × BNC (supports UTC coaxial control)

AHD Input

8MP, 5MP, 4MP, 1080P, 720P

TVI Input

8MP, 5MP, 4MP, 1080P, 720P

CVI Input

8MP, 5MP, 4MP, 1080P, 720P

CVBS Input

PAL / NTSC

IP Video Input

16-ch (up to 32-ch in IP mode), up to 1080P per channel

Audio Input

4 × RCA; up to 16-ch audio over coaxial cable (TVI only)

Audio Output

1 × RCA

Two-way Audio

Supported via RCA and network (half-duplex intercom)

Audio Compression

G.711A / G.711U

Recording

Recording Resolution

8MP, 5MP, 4MP, 1080P, 720P, D1

Recording Frame Rate

8MP @ 7 fps, 5MP @ 12 fps, 4MP @ 15 fps, 1080P @ 25/30 fps

Video Bit Rate

Main stream: 128 Kbps to 6144 Kbps; Sub stream: 16 Kbps to 1024 Kbps

Dual Stream

Supported

Recording Mode

Manual, Scheduled, Event

Perimeter Protection

Intrusion Detection

16-ch, supports selectable target types (human, vehicle, or both)

Event

Event Trigger

Motion Detection, Video Loss, Video Tampering, Alarm Input, Exception

Event Linkage

Recording, Email, Buzzer, PTZ, Alarm Output, Push Notification

Display

Decoding Capability

1-ch @ 4K, 4-ch @ 4K, 16-ch @ 1080P

HDMI Output

HDMI 1: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1024 × 768
HDMI 2: 1920 × 1080, 1280 × 1024, 1024 × 768

VGA Output

1920 × 1080, 1280 × 1024, 1024 × 768

CVBS Output

1 × BNC

Video Output Mode

Supports independent main and auxiliary screen display

Display Layouts

Default Mode (Mirrored): 1/4/8/9/16/32
Auxiliary Screen Mode:
- Main Screen: 1/4/8/9/16
- Auxiliary Screen: 1/4/8/9/16

Playback & Backup

Simultaneous Playback

16-ch / 9-ch / 4-ch / 1-ch

Search Mode

Date/Time, Alarm, Picture, Event

Playback Control

Play, Pause, Fast Forward, Rewind, Slow Playback, Digital Zoom

Backup Mode

USB Device, Network

Network

Network Interface

2 × RJ45, 10/100/1000 Mbps self-adaptive Ethernet port

Protocols

HTTP, HTTPS, TCP/IP, IPv4, IPv6, UDP, RTSP, SMTP, NTP, DNS, DHCP, UPnP, DDNS, P2P, IP Filter, IEEE 802.1X, SNMP

Remote Users

Up to 4 users

Mobile Client

iOS, Android

Interoperability

ONVIF, SDK, CGI

Storage

HDD Interface

4 × SATA interfaces

HDD Capacity

Up to 8 TB per HDD

Disk Group

Supported

Interface

USB Interface

2 × USB 2.0 ports (front panel), 2 × USB 3.0 ports (rear panel)

Alarm Input

8

Alarm Output

2

RS-485

1

Reset Button

On-board reset button

General

Power Supply

100 VAC to 240 VAC

Power Consumption

≤ 10 W (without HDD)

Operating Temperature

-10 °C to 50 °C (14 °F to 122 °F)

Operating Humidity

≤90% RH (Non-condensing)

Certifications

CE-EMC: EN 55032, EN IEC 61000-3-2, EN 61000-3-3, EN 55035
CE-LVD: EN IEC 62368-1
FCC: 47 CFR Part 15, Subpart B

Dimensions

440 × 373.2 × 70 mm (17.32 × 14.69 × 2.76 inch)

Net Weight

Approx. 4.78 kg (10.54 lb) without HDD
