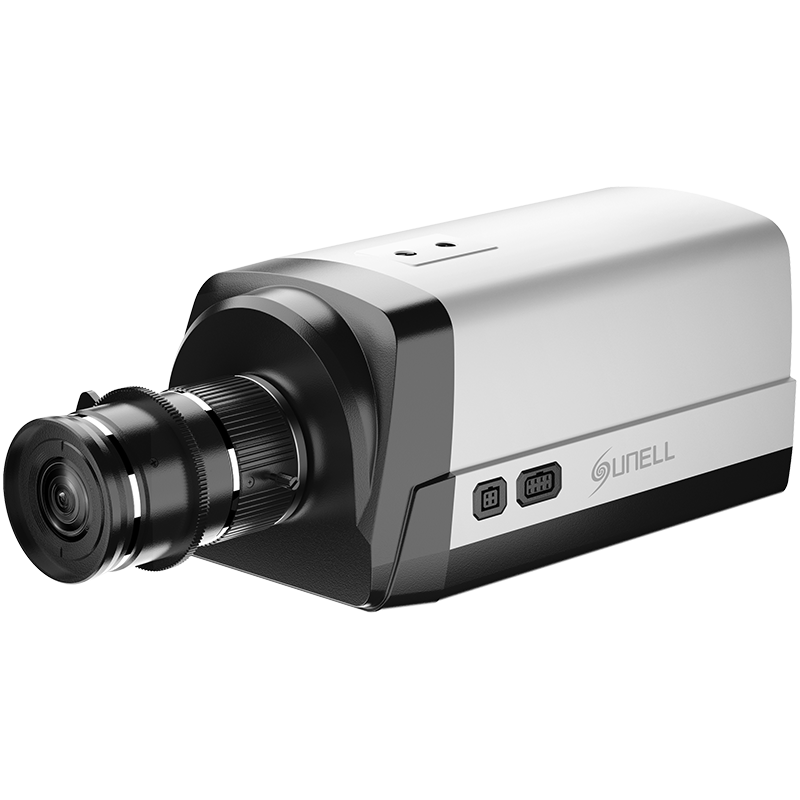

SN-MV1090WAN-EC

Image Sensor

1/1” GMOS

Max. Resolution

9MP (4096 × 2160)

Shutter Speed

1/5 to 1/100,000 s

Min. Illumination

Color: 0.001 Lux @ (F1.4, AGC ON), B/W: 0.0005 Lux  @(F1.4, AGC ON)

Day & Night

Auto (ICR)

S/N Ratio

55dB

Lens Type

Fixed lens

Focal Length

25 mm / 35 mm / 50 mm (Optional)

Max. Aperture

F1.4 (25 mm / 35 mm); F1.5 (50 mm)

Field of View (FOV)

25 mm: H 32.8° , V 17.2°
35 mm: H 23.7° , V 12.5°
50 mm: H 16.7° , V 8.8°

Iris

Fixed Iris

Focus Control

Motorized focus

AI Multi-Target Detection

- Supports face, human, and vehicle detection with snapshot capture
- Supports human and vehicle attribute analysis
- Supports tracking display modes: Full Frame, Four-Corner Frame, and Mosaic

Attribute Analysis

Human Attributes: Gender, age, glasses, hat, bag, upper clothing color & style, lower clothing color & style, reflective vest.
Vehicle Attributes: Type, color, brand, orientation.

Intelligent Analysis

Intrusion, smart motion detection, single line crossing, double line crossing, loitering, wrong-way detection, area people limit, perimeter detection, illegal parking, running detection, fall detection, and fight detection.
- Supports alarm triggering based on specified target types (human/vehicle)

People Counting

Supported

Number of Streams

3 Streams

Resolution

Stream 1: 4096 × 2160, 2592 × 1944, 2592 × 1520, 2560 × 1440, 2304 × 1296, 1920 × 1080, 1280 × 720
Stream 2: D1, VGA, CIF
Stream 3: VGA, CIF, QVGA

Frame Rate

Up to 50/60 fps

Bit Rate Control

CBR/VBR

Bit Rate

Stream 1: 200 kbps to 36 Mbps
Stream 2: 100 kbps to 6 Mbps
Stream 3: 100 kbps to 3 Mbps

Smart Encoding

Supported

Region of Interest (ROI)

Up to 8 zones

Image Adjustment

Brightness, Sharpness, Contrast, Saturation

Scene Mode

Indoor, Outdoor, Mirror, Corridor mode

Exposure Mode

Auto, Manual, Shutter priority

White Balance

Auto, Tungsten, Fluorescent, Daylight, Shadow, Manual

Day/Night Setting

Auto, Day mode, Night mode, Timer

Noise Reduction

2D/3D DNR

Image Enhancement

WDR, HLC, BLC, Defog

Wide Dynamic Range

DWDR

Privacy Masking

Up to 4 configurable zones

Alarm Triggers

IVS, Motion detection, Alarm input, Network alarm, Disk alarm, Day/Night switch alarm

Event Actions

Alarm record, FTP upload, Email notification, Snapshot, Alarm output, Wiegand output

Protocols

IPv4/IPv6, HTTP/HTTPS, DNS, DDNS, DHCP, PPPoE, RTSP/ RTCP/RTP, TCP/UDP, NTP, ARP, UPnP, FTP, SMTP, QoS, ICMP, IGMP, SMTP, 802.1x, SNMP, Multicast

Application Programming Interface

ONVIF (Profile S/T/G/M), SDK, CGI

Max Concurrent Streams

10 channels

User/Host Level

32+ users, 3 levels: Administrator, Operator, and Media user

Web Viewer

Chrome, Firefox, Microsoft Edge, IE11 or earlier

OS / Firmware Protect

Encrypted firmware, Secure boot, Signed firmware

User Authentication

Digest authentication, Brute-force attack protection

Network Authentication

IEEE 802.1X (EAP-TLS)

Secure Communication

HTTPS, WSS (WebSocket Secure), SRTP

Access Control

IP-based access control, Auto logout

Data Protect

Encryption credentials

Audit

Access, system, and event logs

Secure Storage

AES-256 encrypted SD card storage

Supply Chain Security

SBOM

Hardware Security

FIPS 140-3 Level 3 Certified Secure Element

Network Interface

2 × RJ45 10/100/1000 Mbps Ethernet ports

Alarm Interface

4 inputs, 2 outputs

USB Interface

1 × USB 2.0

RS-232

1 × RS-232

RS-485

3 × RS-485

Wiegand Port

1 × Wiegand (26-bit, SHA-1 26-bit, 34-bit, and NEWG 72-bit)

CVBS Output

1 × BNC

SD Card Slot

Built-in microSD card slot (up to 1 TB)

Reset Button

Supported

Language

English, Chinese, Traditional Chinese, Polish, Italian, Portuguese, Spanish, Russian, French, Czech, Hungarian, Japanese, Korean. Default: English

Power Supply

12 VDC / 24 VAC / PoE+ (802.3at)

Power Consumption

Max. 10 W (12 VDC) / approx. 12 W (PoE)

Operating Temperature

-30 °C to 55 °C (-22 °F to 131 °F )

Operating Humidity

< 90% RH, non-condensing

Ingress Protection

N/A

Certifications

CE, FCC

Material

Aluminum alloy

Dimensions

194.8 × 99 × 91 mm (7.67 × 3.9 × 3.58 inch)

Net Weight

Approx. 990 g (without lens)
