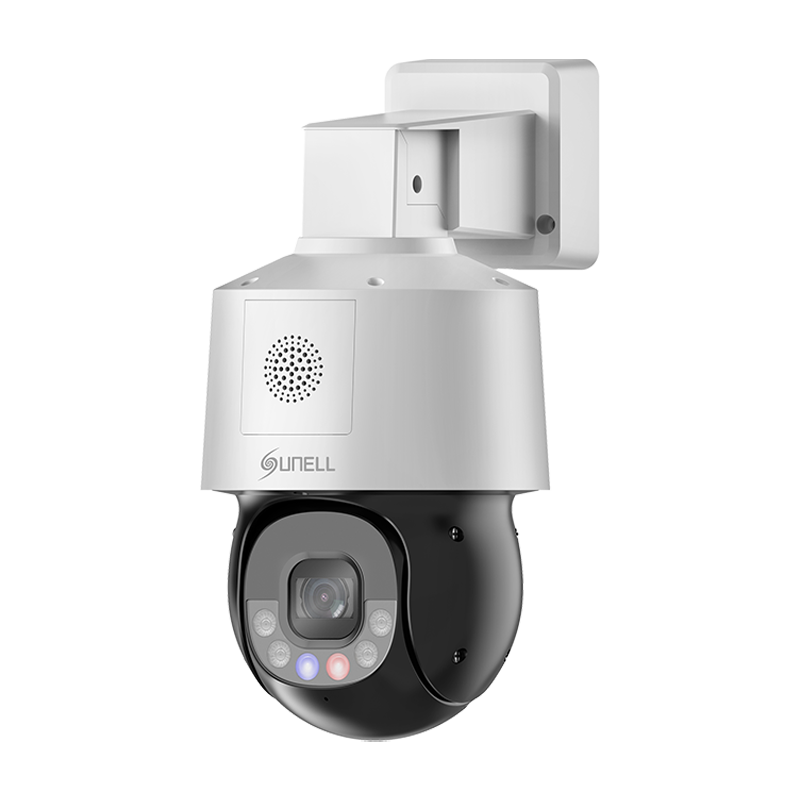

SN-IPS8654ZDC-Z5

Image Sensor

1/2.7” Progressive Scan CMOS

Max Resolution

5MP, 2880(H)×1620(V)

Shutter Speed

1/5 to 1/20,000s

Min Illumination

Color: 0.01 Lux @ (F1.6, AGC ON),
B/W: 0.001 Lux @ (F1.6, AGC ON), 0 Lux with illuminator on

Day & Night

Auto (ICR)

S/N Ratio

55 dB

Focal Length

2.7–13.5 mm (5× optical zoom)

Max. Aperture

F1.66–F3.03

Field of View (FOV)

H: 111.5°–32.3°, V: 57.5°–17.9°

Digital Zoom

16x

Iris

Auto / Manual

Focus Control

Auto / Manual / Semi-automatic

Type

IR, Warm light

IR wavelength

850 nm

Distance

IR distance up to 50 m (164.0 ft)
Warm lights distance up to 30 m (98.4 ft)

Control

IR mode, White mode, Intelligent mode, None

AI Multi-Target Detection

- Supports face, human, and vehicle detection with snapshot capture
- Supports human and vehicle attribute analysis
- Supports tracking display modes: Full Frame, Four-Corner Frame, and Mosaic

Attribute Analysis

Human Attributes: Gender, age, glasses, hat, bag, upper clothing color & style, lower clothing color & style, reflective vest
Vehicle Attributes: Type, color, brand, orientation

Intelligent Analysis

Intrusion detection, smart motion detection, single line crossing, double line crossing, loitering, wrong-way detection, area people limit, perimeter detection, illegal parking, running detection, fall detection, and fight detection
- Supports alarm triggering based on specified target types (human/vehicle)

Smoke and Flame Detection

Supported

People Counting

Supported

Number of Streams

3 Streams

Resolution

Stream 1: 2880 × 1620, 2560 × 1440, 2304 × 1296, 1920 × 1080, 1280 × 720
Stream 2: D1, VGA, 640 × 360, CIF, QVGA
Stream 3: VGA, CIF, QVGA

Frame Rate

Up to 25/30 fps

Bit Rate Control

CBR/VBR

Bit Rate

Stream 1: 200 Kbps to 12 Mbps
Stream 2: 100 Kbps to 6 Mbps
Stream 3: 100 Kbps to 3 Mbps

Smart Encoding

Supported

Region of Interest (ROI)

Supported

Audio Compression

G.711 A-law, G.711 μ-law, RAW_PCM

Audio Bit Rate

64 kbps (G.711), 128 kbps (RAW_PCM)

Image Adjustment

Brightness, Sharpness, Contrast, Saturation adjustable

Scene Mode

Indoor, Outdoor, Mirror

Exposure Mode

Auto, Manual, Shutter priority, Iris priority

White Balance

Auto, Tungsten, Fluorescent, Daylight, Shadow, Manual

Day/Night Setting

Auto, Day mode, Night mode, Timer

Noise Reduction

2D/3D DNR

Image Enhancement

HLC, BLC, Defog, WDR, Anti-shake

Wide Dynamic Range

True WDR (120 dB)

Privacy Masking

Up to 40 privacy zones

Pan/Tilt Range

Pan: 0° to 355° endless, Tilt: -20° to +90° (auto-flip)

Pan Speed

Pan speed: 0.1° to 60°/s, preset speed: 60°/s

Tilt Speed

Tilt speed: 0.1° to 50°/s, preset speed: 50°/s

Preset Accuracy

≤ 0.3°

Preset

400

Track

6 Track

Scan

12 Scan

Tour

12 Tour (up to 32 presets each tour)

Intelligent Tracking

Human/Vehicle auto tracking

Power-Off Memory

Supported

3D Positioning

Supported

PTZ Status Display

Supported

Idle Motion

The time can be set (1-240 minutes), and functions such as preset positions, patrols, scans, and tracks can be run.

Alarm Triggers

IVS, Motion detection, Alarm input, Network alarm, Disk alarm, Day/Night switch alarm, Abnormal sound detection

Event Actions

Alarm record, FTP upload, Email Notification, Snapshot, Alarm output, Alarm-linked tracking, Audible alarm output, White light alarm output, Red and blue alarm output

Protocols

IPv4/IPv6, HTTP/HTTPS, DNS, DDNS, DHCP, PPPoE, RTSP/ RTCP/RTP, TCP/UDP, NTP, ARP, UPnP, FTP, SMTP, QoS, ICMP, IGMP, SMTP, 802.1x, SNMP, Multicast

Application Programming Interface

ONVIF (Profile S/T/G/M), SDK, CGI

Max Concurrent Streams

10 channels

User/Host Level

32+ users, 3 user levels: Administrator, Operator, and Media User

Web Viewer

Chrome, Firefox, Microsoft Edge, IE11 or earlier

OS / Firmware Protect

Encrypted firmware, Secure boot, Signed firmware

User Authentication

Digest authentication, Brute-force attack protection

Network Authentication

IEEE 802.1X (EAP-TLS)

Secure Communication

HTTPS, WSS (WebSocket Secure), SRTP

Access Control

IP-based access control, Auto logout

Data Protect

Encryption credentials

Audit

Access, system, and event logs

Secure Storage

AES-256 encrypted SD card storage

Supply Chain Security

SBOM

Network Interface

1 × RJ45 10/100 Mbps Ethernet port

Built-in Microphone

Supported

Built-in Speaker

Max. sound transmission distance up to 60 m (45–48 dB)

Alarm Interface

1 input, 1 output

SD Card Slot

Built-in microSD card slot (up to 1 TB)

Reset Button

Supported

Language

English, Chinese, Traditional Chinese, Polish, Italian, Portuguese, Spanish, Russian, French, Czech, Hungarian, Japanese, Korean. Default: English

Power Supply

12 VDC / PoE+ (802.3at)

Power Consumption

Less than 19.5W (illuminator + red and blue warning light + speaker + PTZ working + glass defogging )

Operating Temperature

-30°C to 60°C (-22°F to 140 °F)

Operating Humidity

< 95% RH, non-condensing

Ingress Protection

IP66

Certifications

CE-EMC: EN 55032, EN IEC 61000-6-3, EN IEC 61000-3-2, EN 61000-3-3, EN 55035, EN 50130-4
CE-LVD: EN IEC 62368-1
FCC: 47 CFR Part 15, Subpart B

Material

Aluminum Alloy (Front Cover), PC (Housing)

Dimensions

174.4 × 138.8 × 270.9 mm (6.87 × 5.46 × 10.67 inch) of wall mount

Net Weight

Approx. 1.28 Kg (2.82 lb)

Detect

70–205 m (229.7–672.6 ft)

Observe

28–82 m (91.9–269.0 ft)

Recognize

14–41 m (45.9–134.5 ft)

Identify

7–20.5 m (23.0–67.3 ft)
