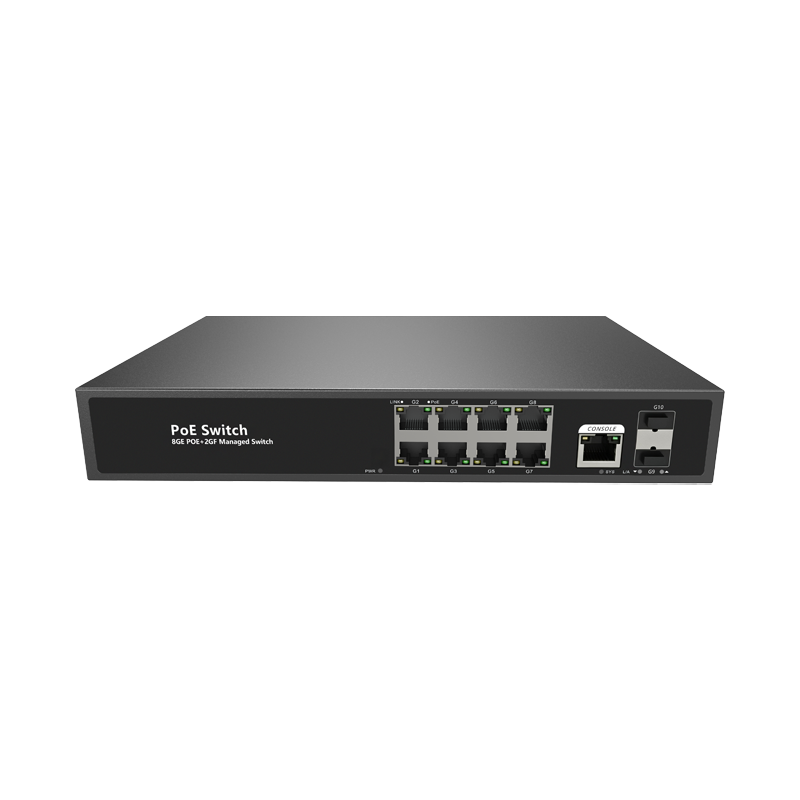

SN-NSW10P8A

Ports

8 × 10/100/1000Base-T RJ45 ports (Data/Power)
2 × 100/1000Base-X SFP fiber optical ports (Data)
1 × Console RS232 port (115200, N, 8, 1)

Console Port

RS232 Console Port

LED Indicators

PWR (Green), SYS (Green), Link (Yellow), L/A (Green), PoE (Green)

Switching Capacity

128 Gbps

Packet Forwarding Rate

14.88 Mpps @64 byte

MAC Address Table

8K

Packet Buffer

4.1 MB

Jumbo Frame

10K

Forwarding Mode

Store-and-forward (Full Wire Speed)

Ethernet Standards

IEEE 802.3 10BASE-T
IEEE 802.3i 10BASE-T
IEEE 802.3u 100BASE-TX
IEEE 802.3ab 1000BASE-T
IEEE 802.3z 1000BASE-X
IEEE 802.3x Flow Control

Ethernet Characteristics

Ports 1–8 support auto-detection of 10/100/1000Base-T(X), full/half duplex and MDI/MDI-X adaptive features

Transmission

10BASE-T: Cat3/4/5 UTP, ≤100 m
100BASE-TX: Cat5 or later UTP, ≤100 m
1000BASE-T: Cat5e or later UTP, ≤100 m

Optical Interface

Gigabit SFP Fiber Optical Ports

Optical Module

Optical modules not included by default; optional single-mode / multi-mode, single-fiber / dual-fiber optical modules, LC connector

Optical Distance

Multi-mode: 850 nm / 0–500 m
Single-mode: 1310 nm / 0–40 km; 1550 nm / 0–120 km

PoE Standard

IEEE 802.3af/at

PoE Ports

Ports 1–8 support PoE power supply

Max. PoE Power per Port

30 W

Total PoE Power

130 W

PoE Pin Assignment

Default: 1/2(+), 3/6(-), 4-core power supply

Network Capability

L2+ Managed

VLAN

Port-based VLAN (4K)
IEEE 802.1Q VLAN
Protocol-based VLAN
Access / Trunk / Hybrid port types

Spanning Tree

STP (IEEE 802.1D)
RSTP (IEEE 802.1w)
MSTP (IEEE 802.1s)

Link Aggregation

LACP
Static Aggregation
Maximum 5 aggregation groups
Maximum 8 ports per group

Multicast

IGMP Snooping v1/v2
Maximum 1024 multicast groups
Fast Leave mechanism
MLD Snooping v1/v2
Multicast VLAN

QoS

DiffServ QoS
8 output queues per port
802.1p / DSCP priority mapping
SP / WRR / SP+WRR scheduling
Priority marking and remarking
Flow-based packet filtering, redirection and rate limiting
Flow-based redirection
Flow-based rate limiting

Port Mirroring / Isolation

Bidirectional traffic mirroring
Port isolation

Loop / Storm Control

Port broadcast packet suppression

LLDP

Link Layer Discovery Protocol (LLDP)

Static Routing

IPv4 static routing/default routing
Maximum 128 entries

ARP

ARP protocol support
Maximum 1024 entries

DHCP

DHCP Server
DHCP Client
DHCP Relay
DHCP Snooping

Management Interface

Console / AUX Modem / Telnet / SSH2.0 CLI

Web Management

HTTPS Web management

SNMP

SNMP V1/V2C/V3

User Authentication

User classification management
Password protection
IEEE 802.1X port-based authentication
AAA & RADIUS authentication

ACL

L2–L4 packet filtering based on MAC, IP, Protocol, TCP/UDP Port, VLAN and other parameters

Port Security

MAC Learning Limit
MAC Blackhole
Port Isolation
IP/MAC/VLAN/Port Binding

DHCP / ARP Security

DHCP Snooping
IP source address protection
ARP packet rate limiting
ARP intrusion detection

Network Attack Protection

DoS attack prevention
Broadcast packet suppression

System Management

FTP / TFTP / Xmodem / SFTP download & management
One-key recovery
NTP
System work log

Diagnostics

Ping Test
Cable Diagnose
CPU instant utilization status view

Power Supply

Built-in Switching Power Supply
AC 100–240 V, 50/60 Hz, 2.3 A

Power Consumption

Idle: <8 W, Full Load: <120 W

Operating Temperature

–20 °C to +55 °C (-4 °F to +131 °F)

Storage Temperature

–40 °C to +75 °C (-40 °F to +167 °F)

Humidity

Operating: 5%–90% RH (Non-condensing)
Storage: 5%–95% RH (Non-condensing)

Dimensions

270 × 181 × 44.5 mm (W × D × H)

Net Weight

1.2 kg

Gross Weight

1.7 kg

Protection

Surge Protection: 4 kV 8/20 μs
Protection Class: IP30

Compliance

CE mark
FCC Part 15 Class B
RoHS
CE/LVD EN60950
