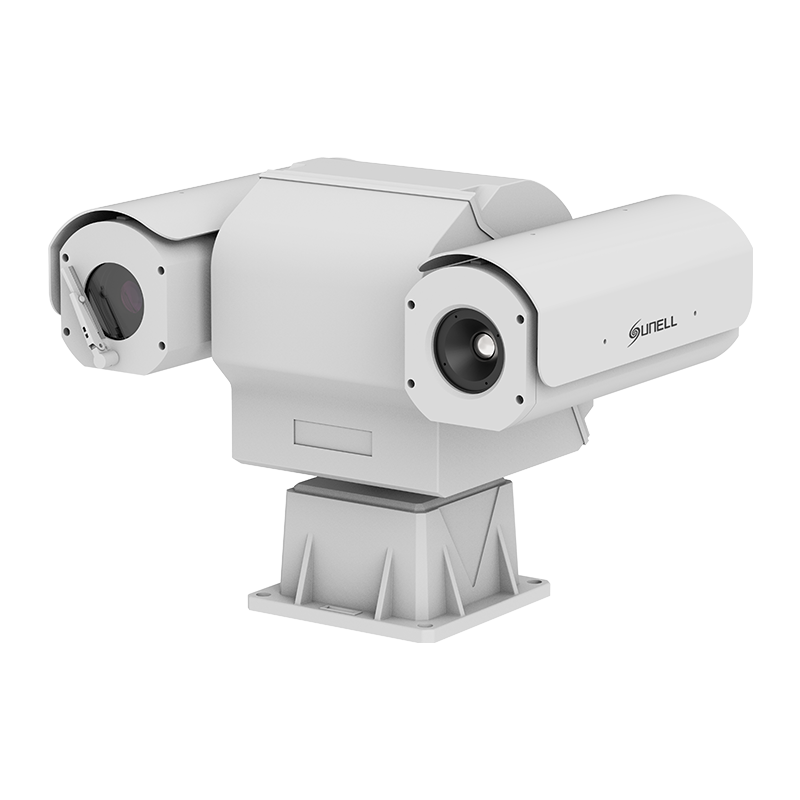

SN-TPT6434LZ-M new

Image Sensor

VOx uncooled focal plane array

1/2.8" SRAVIS CMOS

Max Resolution

640 × 512 thermal resolution, upscaled output up to 1280 × 1024

2592 (H)×1944 (V), 5MP

Pixel Pitch

12 μm

N/A

Spectral Range

8–14 μm

N/A

NETD

≤ 20 mK

N/A

Shutter Speed

N/A

1/5 to 1/100,000s

Min Illumination

N/A

Color: 0.005 Lux @(F1.6, AGC ON),
B/W: 0.0001 Lux (F1.6, AGC ON),
0 Lux with illuminator on

Day & Night

N/A

Auto (ICR)

Lens Type

Fixed lens

Motorized zoom lens

Focal Length

25 mm / 50 mm (optional)

5.3–159 mm (30x optical zoom)

Max. Aperture

F1.0

F1.6 to F4.4

Field of View (FOV)

25 mm: H: 17°, V: 14°
50 mm: H: 8°, V: 7°

H: 56.8°–2.6°, V: 42.7°–2.0°

Focus Control

Motorized focus

Auto / Manual

AI Multi-Target Detection

Supports human and vehicle detection

Supports face, human and vehicle detection with snapshot capture
Supports human and vehicle attribute analysis

Attribute Analysis

N/A

- Human Attributes: Gender, age, glasses, hat, bag, upper clothing color & style, lower clothing color & style, reflective vest.
- Vehicle Attributes: Type, color, brand, orientation.

Intelligent Analysis

Intrusion, smart motion detection, single-line crossing, double-line crossing, loitering, wrong-way detection, enter area, leave area; supports alarm triggering based on specified target types (human/vehicle)

Intrusion detection, smart motion detection, single line crossing, double line crossing, loitering, wrong-way detection, area people limit, perimeter detection, illegal parking, running detection, fall detection, fight detection; supports alarm triggering based on specified target types (human/vehicle)

Smoke and Flame Detection

N/A

Supported

People Counting

Supported

Supported

Smoking Detection

Supported

N/A

Fire Spot Detection

Supported

N/A

Resolution

Stream 1: 1280 × 1024, 1280 × 720, 640 × 512
Stream 2: D1, CIF

Stream 1: 2592 × 1944, 2592 × 1520, 1920 × 1080, 1280 × 720
Stream 2: D1, VGA, CIF
Stream 3: VGA, CIF, QVGA

Frame Rate

Up to 25 fps

Up to 25/30 fps

Bit Rate Control

CBR/VBR

CBR/VBR

Bit Rate

Stream 1: 100 Kbps to 8 Mbps
Stream 2: 10 Kbps to 6 Mbps

Stream 1: 200 Kbps to 12 Mbps
Stream 2: 100 Kbps to 6 Mbps
Stream 3: 100 Kbps to 3 Mbps

Smart Encoding

Supported

Supported

Region of Interest (ROI)

N/A

Supported

Audio Compression

N/A

G.711 A-law, G.711 μ-law, RAW_PCM

Audio Bit Rate

N/A

64 Kbps (G.711), 128 Kbps (RAW_PCM)

Image Adjustment

Brightness, Contrast, Sharpness

Brightness, Saturation, Contrast, Sharpness

Scene Mode

Mirror

Indoor, Outdoor, Mirror

Pseudo-color Setting

Up to 17 colors (White-hot / Black-hot / Rainbow / Iron red / HSV /Bone / Cool / Copper / Fire-hot / Pink / Spring / Summer / Autumn / Winter / Jet / Flame / Rose -Bengal)

N/A

FFC Control

Auto / Manual

N/A

Exposure Mode

N/A

Auto / Manual

White Balance

N/A

Auto / Tungsten / Fluorescent / Daylight / Shadow

Day/Night Setting

N/A

Auto / Day mode / Night mode / Timer

Noise Reduction

2D/3D DNR

2D/3D DNR

Image Enhancement

N/A

WDR, HLC, BLC, Defog, Anti-shake

Wide Dynamic Range

N/A

True WDR (120 dB)

Privacy Masking

Supported

Supported

Temperature Range

-20 °C to 150 °C (-4 °F to 302 °F)

Accuracy

±2 °C or ±2% (whichever is greater)

Temperature Detection

Supports 3 rule types (spot, line, and area); up to 20 rules, including 1 full-screen rule and 19 spot/line/area rules

Temperature Alarm

Temperature difference alarm, temperature threshold alarm, and temperature rise alarm

Temperature Display

Lower-left corner display; cursor-based display of maximum, minimum, and average temperature values

Response Time

≤ 30 ms

Pan/Tilt Range

Pan: 0° to 360° endless, Tilt: -90° to +90°

Pan Speed

Pan: 0.01° to 60°/s, preset speed: 60°/s

Tilt Speed

Tilt: 0.01° to 30°/s, preset speed: 30°/s

Preset Accuracy

± 0.1°

Preset

400

Track

6 tracks

Scan

8 scans

Tour

12 tours, up to 32 presets per tour

Intelligent Tracking

Human/Vehicle auto tracking

Power-Off Memory

Supported

3D Positioning

Supported

Idle Motion

The time can be set (1-240 minutes), and functions such as preset positions, patrols, scans, and tracks can be run.

Alarm Triggers

IVS, temperature anomaly, motion detection, alarm input, network alarm, disk alarm, and abnormal sound detection

Event Actions

Alarm recording, FTP upload, SMTP email notification, alarm output, and audible alarm output

Protocols

IPv4/IPv6, HTTP/HTTPS, DNS, DDNS, DHCP, PPPOE, RTSP/RTP/RTCP, TCP/UDP, NTP, ARP, UPnP, FTP, SMTP, QoS, 802.1x, SNMP, Multicast

Application Programming Interface

ONVIF (Profile S/T/G/M), CGI, SDK

Max Concurrent Streams

10 channels

User/Host Level

32+ users, 3 levels: Administrator, Operator, and Media user

Web Viewer

Chrome, Firefox, Microsoft Edge, IE11 or earlier

OS / Firmware Protect

Encrypted firmware, Signed firmware

User Authentication

Digest Authentication, Brute-Force Attack Protection

Network Authentication

IEEE 802.1X (EAP-TLS)

Secure Communication

HTTPS, WSS (WebSocket Secure), SRTP

Access Control

IP-based access control, Auto logout

Data Protect

Encryption credentials

Audit

Access, system, and event logs

Supply Chain Security

SBOM

Network Interface

1 × RJ45 10/100 Mbps Ethernet port

Audio Interface

1 input, 1 output (visible)

Alarm Interface

9 inputs, 4 outputs

RS-485

1 × RS-485

CVBS Output

2 × BNC outputs (thermal and visible)

SD Card Slot

Built-in microSD card slot (up to 1 TB)
*Memory card must be factory pre-installed and is not field-installable.

Language

English, Chinese, Traditional Chinese, Polish, Italian, Portuguese, Spanish, Russian, French, Czech, Hungarian, Japanese, Korean. Default: English

Power Supply

36 VDC

Power Consumption

Max 80 W

Operating Temperature

-40 °C to 60 °C (-40 °F to 140 °F)

Operating Humidity

≤ 95% RH (non-condensing)

Ingress Protection

IP66

Wiper

Supported

Certifications

CE-EMC: EN 55032, EN IEC 61000-6-4, EN IEC 61000-3-2, EN 61000-3-3, EN 55035, EN 50130-4
FCC: 47 CFR Part 15, Subpart B

Material

Metal

Dimensions

419 × 282 × 316 mm (16.5 × 11.1 × 12.44 inch)

Net Weight

Approx. 16.5 Kg (Contains 25 mm lens) (36.8 lb)

Detect

103–3,090 m (337.9–10,137.8 ft)

Observe

41.2–1,236 m (135.2–4,055.1 ft)

Recognize

20.6–618 m (67.6–2,027.6 ft)

Identify

10.3–309 m (33.8–1,013.8 ft)

Thermal Lens

25 mm

50 mm

Detection (Human: 1.8×0.5 m)

1,042 m (3,418.6 ft)

2,083 m (6,834.0 ft)

Detection (Vehicle: 4×1.5 m)

3,194 m (10,479 ft)

6,389 m (20,961.3 ft)

Recognition (Human: 1.8×0.5 m)

260 m (853 ft)

521 m (1,709.3 ft)

Recognition (Vehicle: 4×1.5 m)

799 m (2,621.4 ft)

1,597 m (5,239.5 ft)

Identification (Human: 1.8×0.5 m)

130 m (426.5 ft)

260 m (853 ft)

Identification (Vehicle: 4×1.5 m)

399 m (1,309.1 ft)

799 m (2,621.4 ft)

Note:
Distances are calculated based on Johnson's Criteria.
Detection: Object must be covered by ≥1.5 pixels.
Recognition: Object must be covered by ≥6 pixels.
Identification: Object must be covered by ≥12 pixels.

Lens

25 mm

50 mm

VCA Detection (Human: 1.8×0.5 m)

280 m (918.6 ft)

480 m (1,574.8 ft)

Temperature Measurement (1 ×1 m)

417 m (1,368.1 ft)

833 m (2,732.9 ft)

Temperature Measurement (0.2×0.2 m)

83 m (272.3 ft)

167 m (547.9 ft)

Fire Detection (1×1 m)

1,042 m (3,418.6 ft)

2,083 m (6,834.0 ft)

Fire Detection (0.2×0.2 m)

208 m (682.4 ft)

417 m (1,368.1 ft)

Values are for reference only. Actual detection range may vary with atmospheric conditions, target size, and installation environment.
