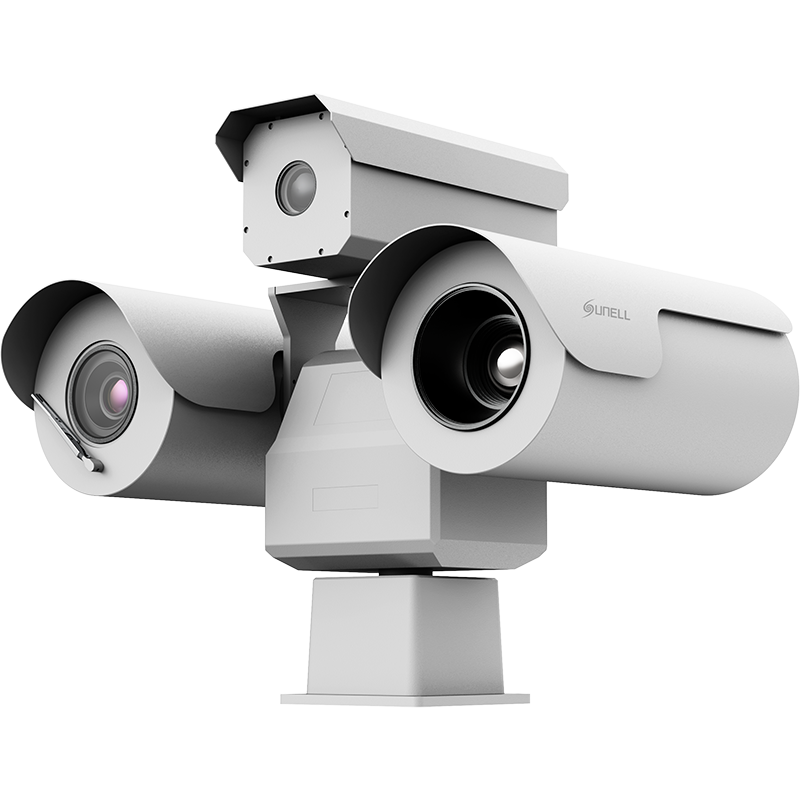

SN-TPT6458WZ-Z

Image Sensor

VOx uncooled focal plane array

1/1.8" STARVIS CMOS

Max Resolution

640 × 512 thermal resolution, upscaled output up to 1920 × 1080

4MP, 2560 (H)×1440 (V)

Pixel Pitch

17 μm

N/A

Spectral Range

8–14 μm

N/A

NETD

≤ 40 mK

N/A

Shutter Speed

N/A

1/25 to 1/100,000s

Min Illumination

N/A

Color: 0.005 Lux (F2.1, AGC ON),
B/W: 0.0001 Lux (F2.1, AGC ON), 0 Lux with light

Day & Night

N/A

Auto (ICR)

Lens Type

Varifocal lens

Varifocal lens

Focal Length

30–150 mm / 30–180 mm / 25–225 mm (optional)

21–775 mm / 12.5–1000 mm (optional)

Max. Aperture

F0.95–F1.13 / F0.8–F1.2 / F1–F1.5

F3.9–T540 / F3.5–F16

Field of View (FOV)

30–150 mm: H: 20.56°–4.15°, V: 16.51°–3.32°
30–180 mm: H: 20.56°–3.46°, V: 16.51°–2.77°
25–225 mm: H: 24.55°–2.77°, V: 19.75°–2.22°

21–775 mm: H: 18.9°–0.55°, V: 14.2°–0.41°
12.5–1000 mm: H: 33.9°–0.46°, V:19.5°–0.26°

Focus Control

Motorized focus

Auto / Manual

Type

Laser

IR wavelength

1535 nm ± 10 nm

Distance

Up to 3 km (9,842.5 ft)

Control

Auto / Manual

AI Multi-Target Detection

Supports human, vehicle, and ship detection

Supports human, vehicle, and ship detection

Intelligent Analysis

Intrusion, smart motion detection, single-line crossing, double-line crossing, loitering, wrong-way detection, enter area, leave area; supports alarm triggering based on specified target types (human/vehicle)

Intrusion, smart motion detection, single-line crossing, double-line crossing, loitering, wrong-way detection, enter area, leave area; supports alarm triggering based on specified target types (human/vehicle)

Smoke and Flame Detection

N/A

Supported

People Counting

Supported

Supported

Fire Spot Detection

Supported

N/A

Resolution

Stream 1: 1920 × 1080, 1280 × 1024, 1280 × 720, 640 × 512
Stream 2: D1, VGA, 640 × 512, CIF

Stream 1: 2560 × 1440, 1920 × 1080, 1280 × 720
Stream 2: 704 × 576, 640 × 480, 352 × 288

Frame Rate

Up to 25 fps

Up to 25/30 fps

Bit Rate Control

CBR/VBR

CBR/VBR

Bit Rate

Stream 1: 100 Kbps to 12 Mbps,
Stream 2: 100 Kbps to 6 Mbps

Stream 1: 32 Kbps to 16 Mbps
Stream 2: 32 Kbps to 8 Mbps

Smart Encoding

Supported

Supported

Audio Compression

N/A

G.711 A-law, G.711 μ-law, RAW_PCM

Audio Bit Rate

N/A

64 Kbps (G.711), 128 Kbps (PCM)

Image Adjustment

Brightness, Contrast, Sharpness

Brightness, Saturation, Contrast, Sharpness

Scene Mode

Mirror

Mirror

Pseudo-color Setting

Up to 17 colors (White-hot / Black-hot / Rainbow / Iron red / HSV /Bone / Cool / Copper / Fire-hot / Pink / Spring / Summer / Autumn / Winter / Jet / Flame / Rose -Bengal)

N/A

FFC Control

Auto / Manual

N/A

White Balance

N/A

Auto / Tungsten / Fluorescent / Daylight / Shadow

Day/Night Setting

N/A

Auto / Day / Night / Timer

Noise Reduction

2D/3D DNR

2D/3D DNR

Image Enhancement

N/A

WDR, HLC, BLC, Optical Defog

Wide Dynamic Range

N/A

True WDR (120 dB)

Privacy Masking

Supported

Supported

Temperature Range

-20 °C to 150 °C (-4 °F to 302 °F)

Accuracy

±8 °C

Temperature Detection

Supports 3 rule types (spot, line, and area); up to 20 rules, including 1 full-screen rule and 19 spot/line/area rules

Temperature Alarm

Temperature difference alarm, temperature threshold alarm, and temperature rise alarm

Temperature Display

Lower-left corner display; cursor-based display of maximum, minimum, and average temperature values

Response Time

≤ 30 ms

Pan/Tilt Range

Pan: 0° to 360° endless, Tilt: -90° to 90°

Pan Speed

Pan: 0.01° to 60°/s,

Tilt Speed

Tilt: 0.01° to 30°/s,

Preset Accuracy

±0.1°

Preset

400

Track

6 tracks

Scan

8 scans

Tour

12 tours, up to 32 presets per tour

Power-Off Memory

Supported

3D Positioning

Supported

Idle Motion

The time can be set (1-240 minutes), and functions such as preset positions, patrols, scans, and tracks can be run.

Alarm Triggers

IVS, temperature anomaly, motion detection, alarm input, network alarm, disk alarm, and abnormal sound detection

Event Actions

Alarm recording, FTP upload, SMTP email notification, alarm output, and audible alarm output

Protocols

IPv4/IPv6, HTTP/HTTPS, DNS, DDNS, DHCP, PPPoE, RTSP/ RTCP/RTP, TCP/UDP, NTP, ARP, UPnP, FTP, SMTP, QoS, ICMP, IGMP, SMTP, 802.1x, SNMP, Multicast

Application Programming Interface

ONVIF (Profile S/T/G/M), CGI, SDK

Max Concurrent Streams

10 channels

User/Host Level

32+ users, 3 levels: Administrator, Operator, and Media user

Web Viewer

Chrome, Firefox, Microsoft Edge, IE11 or earlier

OS / Firmware Protect

Encrypted firmware, Signed firmware

User Authentication

Digest authentication, Brute-force attack protection

Network Authentication

IEEE 802.1X (EAP-TLS)

Secure Communication

HTTPS, WSS (WebSocket Secure), SRTP

Access Control

IP-based access control, Auto logout

Data Protect

Encryption credentials

Audit

Access, system, and event logs

Supply Chain Security

SBOM

Network Interface

1 × RJ45 10/100 Mbps Ethernet port

Audio Interface

1 input, 1 output (visible)

Alarm Interface

7 inputs, 2 outputs

RS-485

1 × RS-485

CVBS Output

BNC (thermal / visible, switchable)

SD Card Slot

Built-in microSD card slot (up to 1 TB)
*Memory card must be factory pre-installed and is not field-installable.

Language

English, Chinese, Polish, Italian, Portuguese, Spanish, Russian, French, Czech, Hungarian. Default: English

Power Supply

48 VDC ±20%

Power Consumption

Max 270 W

Operating Temperature

-40 °C to 65 °C (-40 °F to 149 °F)

Operating Humidity

≤ 95% RH (non-condensing)

Ingress Protection

IP66

Wiper

Supported

Certifications

CE/FCC

Material

Metal

Dimensions

839 × 581.25 × 705 mm (33.03 × 22.88 × 27.76 inch)

Net Weight

Approx. 82 kg (180.78 lb)

Detect

21–775 mm: 290–10,690 m
12.5–1000 mm: 172–13,793 m

Observe

21–775 mm: 117–4,310 m
12.5–1000 mm: 70–5,562 m

Recognize

21–775 mm: 58–2,138 m
12.5–1000 mm: 34–2,759 m

Identify

21–775 mm: 29–1,069 m
12.5–1000 mm: 17–1,379 m

Thermal Lens

30–150 mm

30–180 mm

25–225 mm

Detection (Human: 1.8×0.5 m)

Up to 4,412 m (14,475.1 ft)

Up to 5,294 m (17,368.8 ft)

Up to 6,618 m (21,712.6 ft)

Detection (Vehicle: 4×1.5 m)

Up to 13,529 m (44,386.5 ft)

Up to 16,235 m (53,264.4 ft)

Up to 20,294 m (66,581.4 ft)

Recognition (Human: 1.8×0.5 m)

Up to 1,103 m (3,618.8 ft)

Up to 1,324 m (4,343.8 ft)

Up to 1,654 m (5,426.5 ft)

Recognition (Vehicle: 4×1.5 m)

Up to 3,382 m (11,095.8 ft)

Up to 4,059 m (13,316.9 ft)

Up to 5,074 m (16,647.0 ft)

Identification (Human: 1.8×0.5 m)

Up to 551 m (1,807.7 ft)

Up to 662 m (2,171.9 ft)

Up to 827 m (2,713.3 ft)

Identification (Vehicle: 4×1.5 m)

Up to 1,691 m (5,547.9 ft)

Up to 2,029 m (6,656.8 ft)

Up to 2,537 m (8,323.5 ft)

Note:
Distances are calculated based on Johnson's Criteria.
Detection: Object must be covered by ≥1.5 pixels.
Recognition: Object must be covered by ≥6 pixels.
Identification: Object must be covered by ≥12 pixels.

Lens

30–150 mm

30–180 mm

25–225 mm

Temperature Measurement (1 ×1 m)

Up to 1,765 m (5,790.7 ft)

Up to 2,118 m (6,948.8 ft)

Up to 2,647 m (8,684.4 ft)

Temperature Measurement (0.2×0.2 m)

Up to 353 m (1,158.1 ft)

Up to 424 m (1,391.1 ft)

Up to 529 m (1,735.6 ft)

Fire Detection (1×1 m)

Up to 4,412 m (14,475.1 ft)

Up to 5,294 m (17,368.8 ft)

Up to 6,618 m (21,712.6 ft)

Fire Detection (0.2×0.2 m)

Up to 882 m (2,893.7 ft)

Up to 1,059 m (3,474.4 ft)

Up to 1,324 m (4,343.8 ft)

Values are for reference only. Actual detection range may vary with atmospheric conditions, target size, and installation environment.
