Name: Perimeter Radar
Brand: Sunell
SKU: SN-SMWR06W

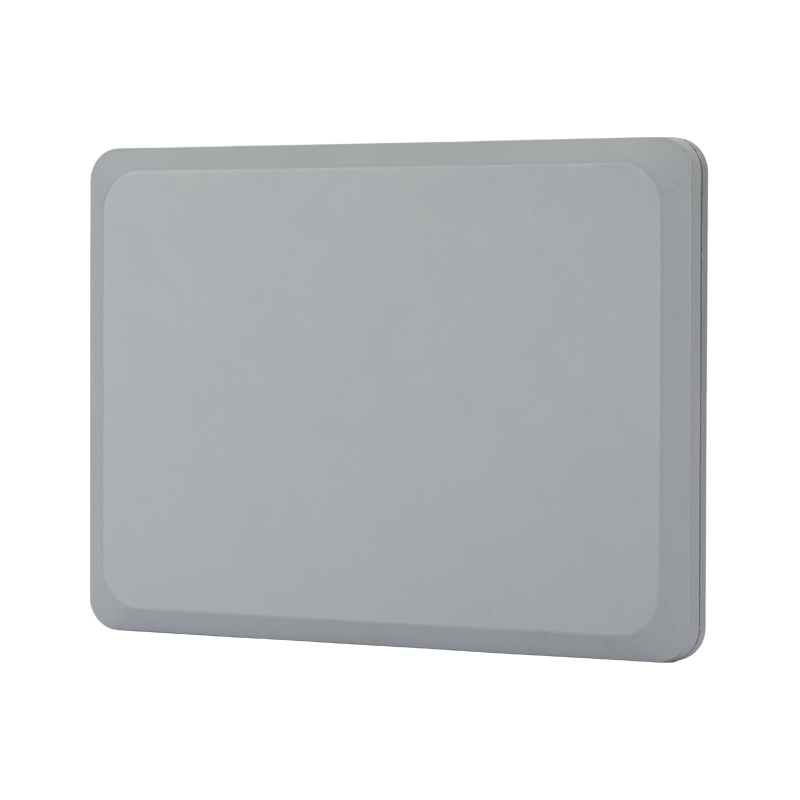

SN-SMWR06W

Perimeter Radar

Up to 1500 m long-range detection for large vessels

High-precision ranging with ±2m accuracy and ±1° angular measurement

24GHz FMCW radar for stable performance in all weather conditions

Flexible system integration via Ethernet, RS485, and standard network protocols

IP66-rated design for reliable outdoor deployment

Radar
Radar Type	FMCW (Frequency Modulated Continuous Wave)
Operating Frequency	24.00–24.25 GHz
Update Rate	8 Hz
Detectable Targets	Vessels
Detection Range	Small vessel (≤10 m): Up to 800 m Large vessel (>50 m): Up to 1,500 m
Detection Angle	Azimuth: 90°, Elevation: 13°
Target Capacity	Up to 32 targets
Range Accuracy	±3 m
Range Resolution	6 m
Angular Accuracy	±1°
Speed Range	0.03–30 m/s
Speed Accuracy	±0.006 m/s
Speed Resolution	0.0125 m/s
Network
Protocols	HTTP, DNS, NTP, TCP, UDP, DHCP, ARP, SSH
Interface
Network Interface	1 × RJ45 (10/100 Mbps, PoE+)
Alarm Interface	2 × Relay Outputs, 2 × Digital Outputs, 1 × Digital Input
RS-485	1
General
Power Supply	12 V DC / PoE+ (IEEE 802.3at)
Power Consumption	≤ 18 W
Operating Temperature	-40 °C to +85 °C (-40 °F to +185 °F)
Storage Temperature	-40 °C to +85 °C (-40 °F to +185 °F)
Ingress Protection	IP66
Dimensions	235.1 × 175.1 × 53.7 mm (9.26 × 6.90 × 2.12 in.)
Net Weight	Approx. 1.65 kg (3.64 lb)
