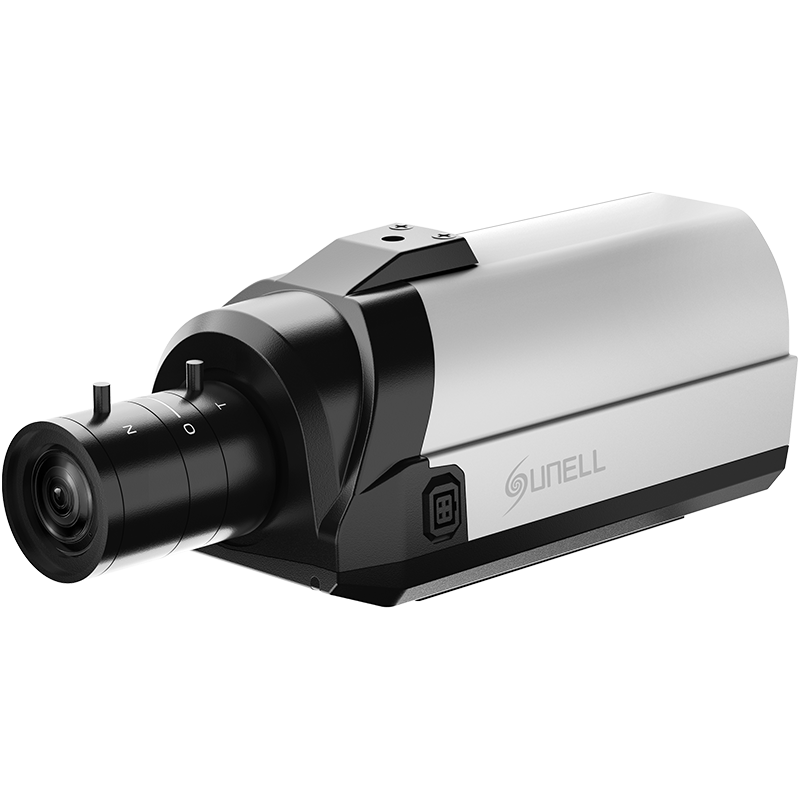

SN-IPC8045HAN-F

Image Sensor

1/2.8” Progressive Scan CMOS

Max Resolution

4MP, 2592(H) × 1520(V)

Shutter Speed

1/5 to 1/100,000s

Min Illumination

Color: 0.01Lux @ (F1.6, AGC ON),
B/W: 0.005 @ (F1.6, AGC ON)

Day & Night

Auto (ICR)

S/N Ratio

55 dB

Lens Type

C/CS mount

Iris

Fixed Iris, Auto Iris

AI Multi-Target Detection

- Supports face, human, and vehicle detection with snapshot capture
- Supports human and vehicle attribute analysis
- Supports tracking display modes: Full Frame, Four-Corner Frame, and Mosaic

Attribute Analysis

Human Attributes: Gender, age, glasses, hat, bag, upper clothing color & style, lower clothing color & style, reflective vest.
Vehicle Attributes: Type, color, brand, orientation.

Intelligent Analysis

Intrusion, smart motion detection, single line crossing, double line crossing, loitering, wrong-way detection, area people limit, perimeter detection, illegal parking, running detection, fall detection, fight detection, and people counting.
- Supports accurate human and vehicle classification

People Counting

Supported

Number of Streams

3 Streams

Resolution

Stream1: 2592 × 1520, 2560 × 1440, 2304 × 1296, 1920 × 1080, 1280 × 720
Stream2: D1, VGA, 640 × 360, CIF, QVGA
Stream3: VGA, CIF, QVGA

Frame Rate

Up to 50/60 fps

Bit Rate Control

CBR/VBR

Bit Rate

Stream1: 200 Kbps to 12 Mbps
Stream2: 100 Kbps to 6 Mbps
Stream3: 100 Kbps to 3 Mbps

Smart Encoding

Supported (H.265, H.264, MJPEG)

Region of Interest (ROI)

Up to 8 zones

Audio Compression

G.711 A-law, G.711 μ-law, RAW_PCM

Audio Bit Rate

64 Kbps (G.711), 128 Kbps (RAW_PCM)

Image Adjustment

Brightness, Sharpness, Contrast, Saturation adjustable

Scene Mode

Indoor, Outdoor, Mirror, Corridor mode

Exposure Mode

Auto, Manual, Shutter priority

White Balance

Auto, Tungsten, Fluorescent, Daylight, Shadow, Manual

Day/Night Setting

Auto, Day mode, Night mode, Timer

Noise Reduction

2D/3D DNR

Image Enhancement

HLC, BLC, Defog, WDR

Wide Dynamic Range

True WDR (120 dB)

Privacy Masking

Up to 4 configurable zones

Alarm Triggers

IVS, Motion detection, Alarm input, Network alarm, Disk alarm, Day/Night switch alarm, Abnormal sound detection

Event Actions

Alarm record, FTP upload, Email notification, Snapshot, Alarm output, Audible alarm output

Protocols

IPv4/IPv6, HTTP/HTTPS, DNS, DDNS, DHCP, PPPoE, RTSP/ RTCP/RTP, TCP/UDP, NTP, ARP, UPnP, FTP, SMTP, QoS, ICMP, IGMP, SMTP, 802.1x, SNMP, Multicast

Application Programming Interface

ONVIF (Profile S/T/G/M), SDK, CGI

Max Concurrent Streams

10 channels

User/Host Level

32+ users, 3 levels: Administrator, Operator, and Media user

Web Viewer

<IE11, Chrome, Firefox, Microsoft Edge

OS / Firmware Protect

Encrypted firmware,  Signed firmware

User Authentication

Digest authentication, Brute-force attack protection

Network Authentication

IEEE 802.1X (EAP-TLS)

Secure Communication

HTTPS, WSS (WebSocket Secure), SRTP

Access Control

IP-based access control, Auto logout

Data Protect

Encryption credentials

Audit

Access, system, and event logs

Secure Storage

AES-256 encrypted SD card storage

Supply Chain Security

SBOM

Network Interface

1 × RJ45 10/100 Mbps Ethernet port

Built-in Microphone

Supported

Audio Interface

1 input (3.5 mm), 1 output (3.5 mm)

Alarm Interface

1 input, 1 output

RS-485

1 × RS-485

CVBS Output

1 × BNC

SD Card Slot

Built-in microSD card slot (up to 1 TB)

Reset Button

Supported

Language

English, Chinese, Traditional Chinese, Polish, Italian, Portuguese, Spanish, Russian, French, Czech, Hungarian, Japanese, Korean. Default: English

Power Supply

12 VDC / 24 VAC (-10% to +25%) / PoE (802.3af)

Power Consumption

Max 3 W

Operating Temperature

-30 °C to 50 °C (-22 °F to 122 °F )

Operating Humidity

< 90% RH, non-condensing

Ingress Protection

N/A

Certifications

CE-EMC
- EN 55032, EN IEC 61000-6-4, EN IEC 61000-3-2, EN 61000-3-3, EN 55035, EN 50130-4
FCC 47 CFR Part 15 Subpart B

Material

Aluminum alloy

Dimensions

152.9 × 74.4 × 69.7 mm (6.02 × 2.93 × 2.74 inch)

Net Weight

Approx. 0.4 kg (0.88 lb)
