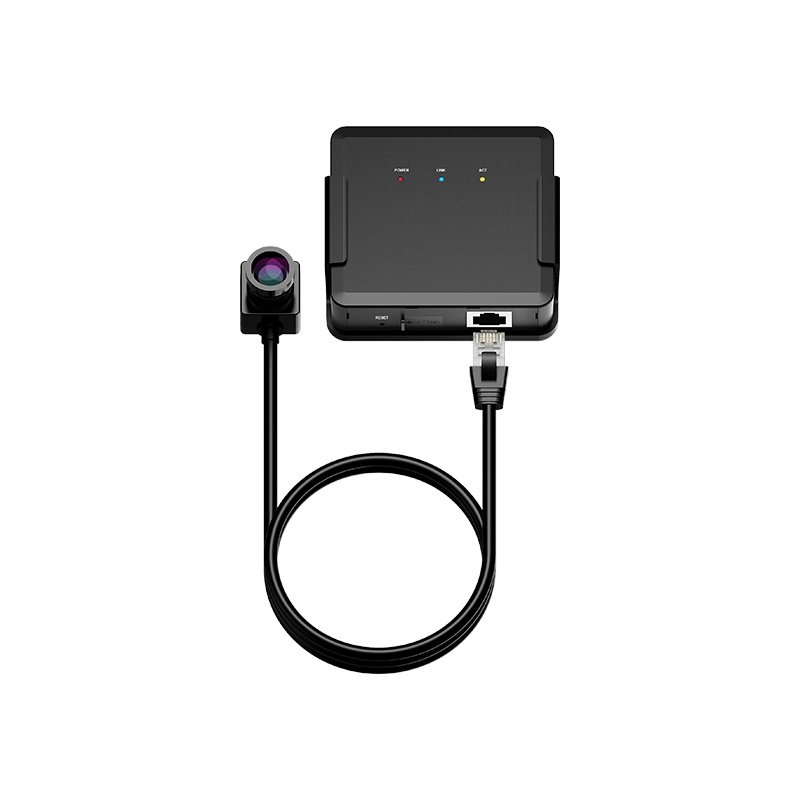

SN-MNC8046KBA1-S1B

Image Sensor

1/2.8” Progressive Scan CMOS

Max Resolution

4MP, 2592(H)×1520(V)

Shutter Speed

1/5 to 1/20,000s

Min Illumination

Color: 0.01 Lux @ (F2.0, AGC ON), B/W: 0.005 Lux (F2.0, AGC ON)

Day & Night

Fixed filter

Lens Type

Fixed lens, Fixed-focal

Focal Length

2.8 mm

Max. Aperture

F2.0

Field of View (FOV)

H: 105.2°, V: 58.2°

Iris

Fixed Iris

AI Multi-Target Detection

- Supports face, human, and vehicle detection with snapshot capture
- Supports tracking display modes: Full Frame, Four-Corner Frame, and Mosaic

Intelligent Analysis

Intrusion, smart motion detection, single line crossing, double line crossing, loitering, wrong-way detection, area people limit, perimeter detection, illegal parking, running detection, fall detection, and fight detection.
- Supports alarm triggering based on specified target types (human/vehicle)

People Counting

Supported

Number of Streams

3 Streams

Resolution

Stream 1: 2592 × 1520, 2560 × 1440, 2304 × 1296, 1920 × 1080, 1280 × 720
Stream 2: D1, VGA, CIF
Stream 3: VGA, CIF, QVGA

Frame Rate

Up to 25/30 fps

Bit Rate Control

CBR/VBR

Bit Rate

Stream 1: 200 Kbps to 12 Mbps
Stream 2: 100 Kbps to 6 Mbps
Stream 3: 100 Kbps to 3 Mbps

Smart Encoding

Supported

Region of Interest (ROI)

Up to 8 zones

Audio Compression

G.711 A-law, G.711 μ-law, RAW_PCM

Audio Bit Rate

64 Kbps (G.711), 128 Kbps (RAW_PCM)

Image Adjustment

Brightness, Sharpness, Contrast, Saturation adjustable

Scene Mode

Indoor, Outdoor, Mirror, Corridor mode

Exposure Mode

Auto, Manual, Shutter priority

White Balance

Auto, Tungsten, Fluorescent, Daylight, Shadow, Manual

Day/Night Setting

Auto, Day mode

Noise Reduction

2D/3D DNR

Image Enhancement

HLC, BLC, Defog, WDR

Wide Dynamic Range

True WDR (120 dB)

Privacy Masking

Up to 4 configurable zones

Alarm Triggers

IVS, Motion detection, Alarm input, Network alarm, Disk alarm, Day/Night switch alarm, Abnormal sound detection

Event Actions

Alarm record, Alarm output, FTP upload, Email notification, Snapshot, Audible alarm output

Protocols

IPv4/IPv6, HTTP/HTTPS, DNS, DDNS, DHCP, PPPoE, RTSP/ RTCP/RTP, TCP/UDP, NTP, ARP, UPnP, FTP, SMTP, QoS, ICMP, IGMP, SMTP, 802.1x, SNMP, Multicast

Application Programming Interface

ONVIF (Profile S/T/G/M), SDK, CGI

Max Concurrent Streams

10 channels

User/Host Level

32+ users, 3 user levels: Administrator, Operator, and Media User

Web Viewer

Chrome, Firefox, Microsoft Edge, IE11 or earlier

OS / Firmware Protect

Encrypted firmware, Secure boot, Signed firmware

User Authentication

Digest authentication, Brute-force attack protection

Network Authentication

IEEE 802.1X (EAP-TLS)

Secure Communication

HTTPS, WSS (WebSocket Secure), SRTP

Access Control

IP-based access control, Auto logout

Data Protect

Encryption credentials

Audit

Access, system, and event logs

Secure Storage

AES-256 encrypted SD card storage

Supply Chain Security

SBOM

Network Interface

1 × RJ45 10/100 Mbps Ethernet port

Audio Interface

1 input, 1 output

Alarm Interface

2 inputs, 1 output

CVBS Output

Optional

SD Card Slot

Built-in microSD card slot (up to 1 TB)

Reset Button

Supported

Language

English, Chinese, Traditional Chinese, Polish, Italian, Portuguese, Spanish, Russian, French, Czech, Hungarian, Japanese, Korean. Default: English

Power Supply

12 VDC (-15% to +25%)/PoE (802.3af)

Power Consumption

Max 3 W

Operating Temperature

-30 °C to 55 °C (-22 °F to 131 °F )

Operating Humidity

≤90% RH (Non-condensing)

Ingress Protection

N/A

Certifications

CE-EMC
- EN 55032, EN IEC 61000-6-4, EN IEC 61000-3-2, EN 61000-3-3, EN 55035, EN 50130-4
FCC 47 CFR Part 15 Subpart B

Material

Aluminum Alloy (Camera), PC (Main Unit)

Dimensions

Camera: 35.9 × 22 × 22 mm (1.41 × 0.87 × 0.87 inch)
Main body: 86.0 × 75.1 × 33.5 mm (3.39 × 2.96 × 1.32 inch)

Net Weight

Approx. 0.25 Kg (0.55 lb)

Length Of Lens Cable

2 m (6.56 ft) standard length, Customizable 4 m (13.12 ft) Cat 7a Ethernet cable available.
