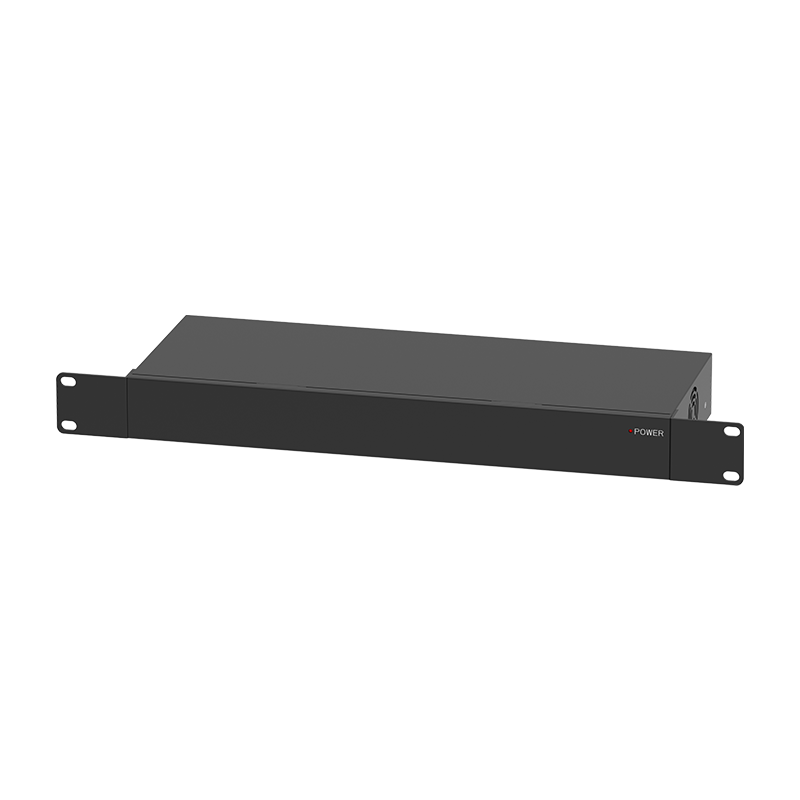

Name: 16-Channel Hybrid Video Codec
Brand: Sunell
SKU: SN-VSR3816

SN-VSR3816

16-Channel Hybrid Video Codec

Supports 16-channel AHD/TVI/CVI/CVBS video inputs

Supports up to 24-channel IP video inputs

Supports video encoding and decoding for analog and IP video integration

Supports high-resolution video encoding up to 4K-N

Supports HDMI output up to 4K UHD

Supports multi-screen display for local monitoring

Supports human and vehicle intrusion detection

Features dual Gigabit Ethernet interfaces

Video & Audio
Analog Video Input	16 × BNC (supports UTC coaxial control)
AHD Input	8MP, 5MP, 4MP, 1080P, 720P
TVI Input	8MP, 5MP, 4MP, 1080P, 720P
CVI Input	8MP, 5MP, 4MP, 1080P, 720P
CVBS Input	PAL/NTSC
IP Video Input	Up to 24-ch IP video inputs, each channel up to 1080P
Audio Input	8-ch, RCA
Audio Output	1-ch, RCA
Perimeter Protection
Intrusion Detection	4-ch, supports selectable target types (human, vehicle, or both)
Display
Decoding Capability	1-ch @ 4K, 4-ch @ 4MP, 16-ch @ D1
HDMI Output	3840 × 2160, 1920 × 1080, 1280 × 1024, 1024 × 768
VGA Output	1920 × 1080, 1280 × 1024, 1024 × 768
CVBS Output	1 × BNC
Video Output Mode	Simultaneous HDMI, VGA, and CVBS outputs
Display Layouts	1/4/8/9/16
Network
Network Interface	2 × RJ45, 10/100/1000 Mbps self-adaptive Ethernet port
Protocols	HTTP, HTTPS, TCP/IP, IPv4, UDP, RTSP, SMTP, NTP, DNS, DHCP, UPnP, DDNS, P2P, IP Filter, IEEE 802.1X, SNMP

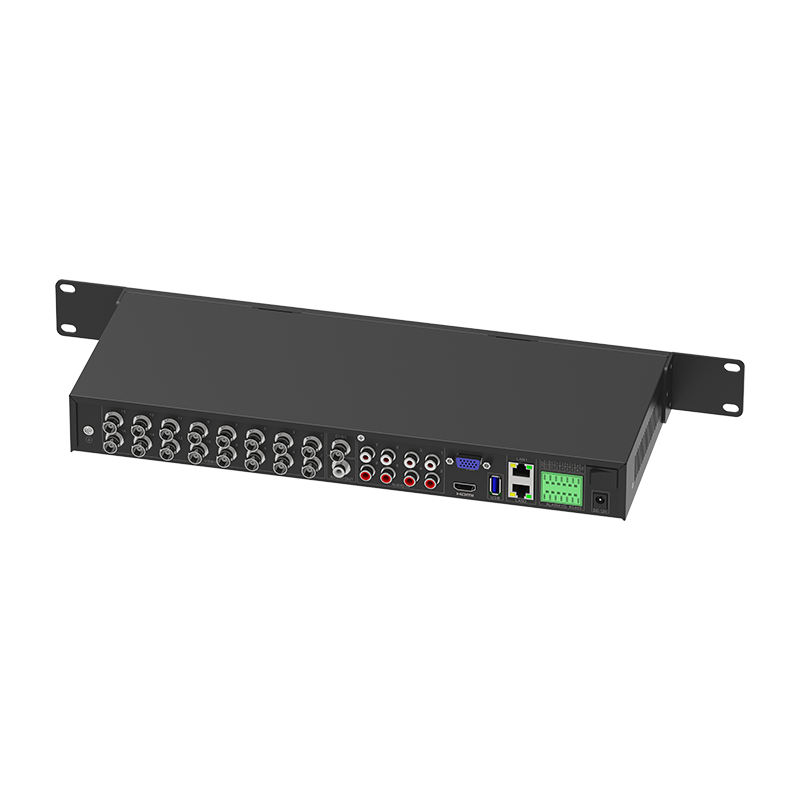

Interface
USB Interface	1 × USB3.0
Alarm Input	8
Alarm Output	1
RS-485	1
General
Power Supply	12 VDC / 3 A
Power Consumption	Max. 15 W
Operating Temperature	-10 °C to 50 °C (14 °F to 122 °F)
Operating Humidity	≤90% RH (Non-condensing)
Dimensions	Without rack ears: 380 × 159.8 × 51 mm (14.96 × 6.29 × 2.01 inch) With rack ears: 482 × 159.8 × 51 mm (18.98 × 6.29 × 2.01 inch)
Net Weight	Approx. 1.6 kg (3.53 lb)
