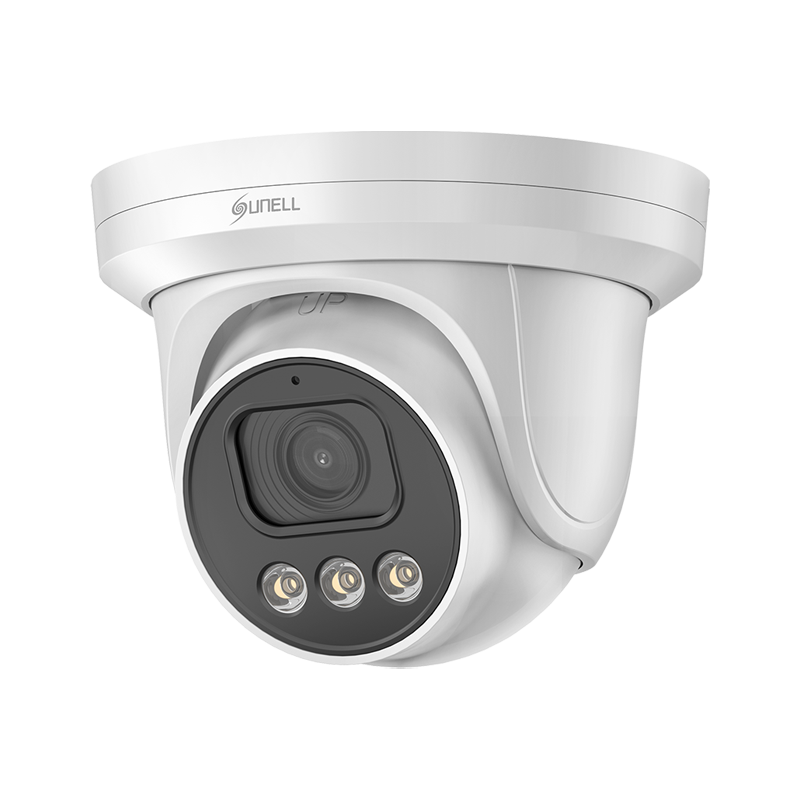

SN-IPV8146HCBS-B

Image Sensor

1/3” Progressive Scan CMOS

Max Resolution

4MP, 2560(H) × 1440(V)

Shutter Speed

1/5 to 1/20,000s

Min Illumination

Color: 0.01 Lux @ (F1.6, AGC ON),
B/W: 0.005 Lux @ (F1.6, AGC ON), 0 Lux with illuminator on

Day & Night

Auto (ICR)

Angle Adjustment

Pan: 0° to 355°, Tilt: 0° to 80°, Rotation: 0° to 360°

Lens Type

Fixed lens, fixed focal

Focal Length

2.8 mm

Max. Aperture

F1.6

Field of View (FOV)

H: 96.6°, V: 53.2°

Iris

Fixed Iris

Type

IR, Warm light

IR wavelength

850 nm

Distance

IR distance up to 30 m (98.4 ft)
Warm light distance up to 20 m (65.6 ft)

Control

IR mode, White mode, Intelligent mode, None

AI Multi-Target Detection

Supports face, human, and vehicle detection

Intelligent Analysis

Intrusion, smart motion detection, line crossing
- Supports alarm triggering based on specified target types (human/vehicle)

Number of Streams

3 Streams

Resolution

Stream 1: 2560 × 1440, 2304 × 1296, 1920 × 1080, 1280 × 720
Stream 2: D1, VGA, 640×360, CIF, QVGA
Stream 3: VGA, CIF, QVGA

Frame Rate

Up to 25 fps

Bit Rate Control

CBR/VBR

Bit Rate

Stream 1: 100 Kbps to 6 Mbps
Stream 2: 100 Kbps to 6 Mbps
Stream 3: 100 Kbps to 3 Mbps

Smart Encoding

Supported

Region of Interest (ROI)

Up to 8 zones

Audio Compression

G.711 A-law, G.711 μ-law, RAW_PCM

Audio Bit Rate

64 Kbps (G.711), 128 Kbps (RAW_PCM)

Image Adjustment

Brightness, Sharpness, Contrast, Saturation adjustable

Scene Mode

Indoor, Outdoor, Mirror, Corridor mode

Exposure Mode

Auto, Manual, Shutter priority

White Balance

Auto, Tungsten, Fluorescent, Daylight, Shadow, Manual

Day/Night Setting

Auto, Day mode, Night mode, Timer

Noise Reduction

2D/3D DNR

Image Enhancement

HLC, BLC, Defog, WDR

Wide Dynamic Range

DWDR

Privacy Masking

Up to 4 configurable zones

Alarm Triggers

IVS, Motion detection, Disk alarm, Network alarm, Day/Night switch alarm, Abnormal sound detection

Event Actions

Alarm record, FTP upload, Email notification, White light alarm output

Protocols

IPv4/IPv6, HTTP/HTTPS, DNS, DDNS, DHCP, PPPoE, RTSP/ RTCP/RTP, TCP/UDP, NTP, ARP, UPnP, FTP, SMTP, QoS, ICMP, IGMP, SMTP, 802.1x, SNMP, Multicast

Application Programming Interface

ONVIF (Profile S/T/G/M), SDK, CGI

Max Concurrent Streams

10 channels

User/Host Level

32+ users, 3 user levels: Administrator, Operator, and Media User

Web Viewer

Chrome, Firefox, Microsoft Edge, IE11 or earlier

OS / Firmware Protect

Encrypted firmware, Signed firmware

User Authentication

Digest authentication, Brute-force attack protection

Network Authentication

IEEE 802.1X (EAP-TLS)

Secure Communication

HTTPS, WSS (WebSocket Secure), SRTP

Access Control

IP-based access control, Auto logout

Data Protect

Encryption credentials

Audit

Access, system, and event logs

Supply Chain Security

SBOM

Network Interface

1 × RJ45 10/100 Mbps Ethernet port

Built-in Microphone

Supported

SD Card Slot

Built-in microSD card slot (up to 1 TB)

Reset Button

Supported

Language

English, Chinese, Traditional Chinese, Polish, Italian, Portuguese, Spanish, Russian, French, Czech, Hungarian, Japanese, Korean. Default: English

Power Supply

12 VDC (-15% to +25%)/PoE (802.3af)

Power Consumption

Typical: 1.9 W (IR off, 12 VDC) / approx. 2.4 W (PoE)
Max: 4.9 W (IR on, 12 VDC) / approx. 6.2 W (PoE)

Operating Temperature

-30 °C to 60 °C (-22 °F to 140 °F )

Operating Humidity

< 95% RH, non-condensing

Ingress Protection

IP67 (housing)

Certifications

CE-EMC: EN 55032, EN IEC 61000-6-4, EN IEC 61000-6-2, EN 55035, EN 50130-4
FCC 47 CFR Part 15 Subpart B

Material

Aluminum alloy housing; PC components

Dimensions

φ118.2 × 93.9 mm (φ4.65 × 3.7 inch)

Net Weight

Approx. 495 g (1.09 lb)

Detect

64 m (210.0 ft)

Observe

35.6 m (116.8 ft)

Recognize

12.8 m (42.0 ft)

Identify

6.4 m (21.0 ft)
