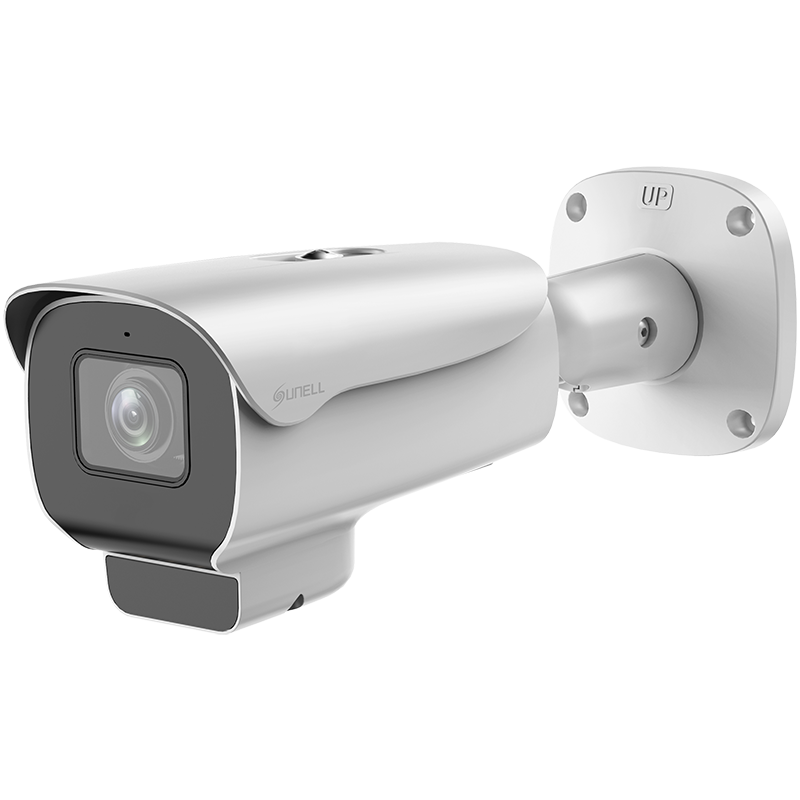

SN-IPR8047DQAN-PZ-C

Image Sensor

1/1.8” Progressive Scan CMOS

Max Resolution

4MP, 2688(H) × 1520(V)

Shutter Speed

1/5 to 1/100,000s

Min Illumination

Color: 0.0025 Lux @ (F1.2, AGC ON),
B/W: 0.0005 @ (F1.2, AGC ON), 0 Lux with IR on

Day & Night

Auto (ICR)

S/N Ratio

55 dB

Angle Adjustment

Pan: 0° to 360°, Tilt: 0° to 90°, Rotation: 0° to 360°

Lens Type

Motorized varifocal lens

Focal Length

4.1–12.8 mm / 8–32 mm (optional)

Max. Aperture

F1.5–F2.5 (4.1–12.8 mm), F1.6 (8–32 mm)

Field of View (FOV)

4.1–12.8 mm: H: 91.4°–35.5°, V: 50.5°–20°
8–32 mm: H: 41.1°–14°, V: 23°–7.9°

Iris

Auto Iris

Focus Control

Motorized focus

Type

IR

IR wavelength

850 nm

Distance

4.1–12.8 mm: up to 70 m (229.7 ft)
8–32 mm: up to 80 m (262.5 ft)

Control

Auto / Manual

AI Multi-Target Detection

- Supports face, human, and vehicle detection with snapshot capture
- Supports human and vehicle attribute analysis
- Supports tracking display modes: Full Frame, Four-Corner Frame, and Mosaic

Attribute Analysis

Human Attributes: Gender, age, glasses, hat, bag, upper clothing color & style, lower clothing color & style, reflective vest.
Vehicle Attributes: Type, color, brand, orientation.

Intelligent Analysis

Intrusion detection, smart motion detection, single line crossing, double line crossing, loitering, wrong-way detection, area people limit, perimeter detection, illegal parking, running detection, fall detection, fight detection.
- Supports alarm triggering based on specified target types (human/vehicle)

People Counting

Supported

Number of Streams

3 Streams

Resolution

Stream1: 2688 × 1520, 2560 × 1440, 2304 × 1296, 1920 × 1080, 1280 × 720
Stream2: D1, VGA, CIF
Stream3: VGA, CIF, QVGA

Frame Rate

Up to 50/60 fps

Bit Rate Control

CBR/VBR

Bit Rate

Stream 1: 100 Kbps to 16 Mbps
Stream 2: 100 Kbps to 6 Mbps
Stream 3: 100 Kbps to 3 Mbps

Smart Encoding

Supported

Region of Interest (ROI)

Up to 8 zones

Audio Compression

G.711 A-law, G.711 μ-law, RAW_PCM

Audio Bit Rate

64 Kbps (G.711), 128 Kbps (RAW_PCM)

Image Adjustment

Brightness, Sharpness, Contrast, Saturation

Scene Mode

Indoor, Outdoor, Mirror, Corridor mode

Exposure Mode

Auto, Manual, Shutter priority

White Balance

Auto, Tungsten, Fluorescent, Daylight, Shadow, Manual

Day/Night Setting

Auto, Day mode, Night mode, Timer

Noise Reduction

2D/3D DNR

Image Enhancement

WDR, HLC, BLC, Defog, Anti-shake

Wide Dynamic Range

True WDR (120 dB)

Privacy Masking

Up to 4 configurable zones

Alarm Triggers

IVS, Motion detection, Alarm input, Network alarm, Disk alarm, Day/Night switch alarm, Abnormal sound detection

Event Actions

Alarm record, FTP upload, Email notification, Snapshot, Alarm output, Audible alarm output

Protocols

IPv4/IPv6, HTTP/HTTPS, DNS, DDNS, DHCP, PPPoE, RTSP/ RTCP/RTP, TCP/UDP, NTP, ARP, UPnP, FTP, SMTP, QoS, ICMP, IGMP, SMTP, 802.1x, SNMP, Multicast

Application Programming Interface

ONVIF (Profile S/T/G/M), SDK, CGI

Max Concurrent Streams

10 channels

User/Host Level

32+ users, 3 levels: Administrator, Operator, Media user

Web Viewer

<IE11, Chrome, Firefox, Microsoft Edge

OS / Firmware Protect

Encrypted firmware, Secure boot, Signed firmware

User Authentication

Digest authentication, Brute-force attack protection

Network Authentication

IEEE 802.1X (EAP-TLS)

Secure Communication

HTTPS, WSS (WebSocket Secure), SRTP

Access Control

IP-based access control, Auto logout

Data Protect

Encryption credentials

Audit

Access, system, and event logs

Secure Storage

AES-256 encrypted SD card storage

Supply Chain Security

SBOM

Hardware Security

FIPS 140-3 Level 3 certified Secure Element

Network Interface

1 × RJ45 10/100 Mbps Ethernet port

Built-in Microphone

Supported

Built-in Speaker

Supported

Audio Interface

1 input (3.5 mm), 1 output (3.5 mm)

Alarm Interface

1 input, 2 outputs

RS-485

1 × RS-485

Wiegand Port

1 × Wiegand (26-bit, SHA-1 26-bit, 34-bit, and NEWG 72-bit)

SD Card Slot

Built-in microSD card slot (up to 1 TB)

Reset Button

Supported

Language

English, Chinese, Traditional Chinese, Polish, Italian, Portuguese, Spanish, Russian, French, Czech, Hungarian, Japanese, Korean. Default: English

Power Supply

12 VDC (-15% to +25%) / PoE (802.3af)

Power Consumption

Typical: 4.5 W (12 VDC), Max (IR on + Focusing): 12.1 W (12 VDC)

Operating Temperature

-40 °C to 60 °C (-40 °F to 140 °F )

Operating Humidity

< 95% RH, non-condensing

Ingress Protection

IP66

Certifications

CE-EMC: EN 55032, EN IEC 61000-6-4, EN IEC 61000-3-2, EN 61000-3-3, EN 55035, EN 50130-4
FCC 47 CFR Part 15 Subpart B

Material

Aluminum alloy housing; PC components

Dimensions

303 × 100 × 107 mm (11.9 × 3.94 × 4.21 inch)

Net Weight

Approx. 1.33 kg (2.93 lb)

Detect

4.1–12.8 mm: 73–177 m (240–581 ft)
8–32 mm: 142–402 m (466–1,320 ft)

Observe

4.1–12.8 mm: 29.2–70.8 m (96–232 ft)
8–32 mm: 56.8–160.8 m (186–528 ft)

Recognize

4.1–12.8 mm: 14.6–35.4 m (48–116 ft)
8–32 mm: 28.4–80.4 m (93–264 ft)

Identify

4.1–12.8 mm: 7.3–17.7 m (24–58 ft)
8–32 mm: 14.2–40.2 m (47–132 ft)
