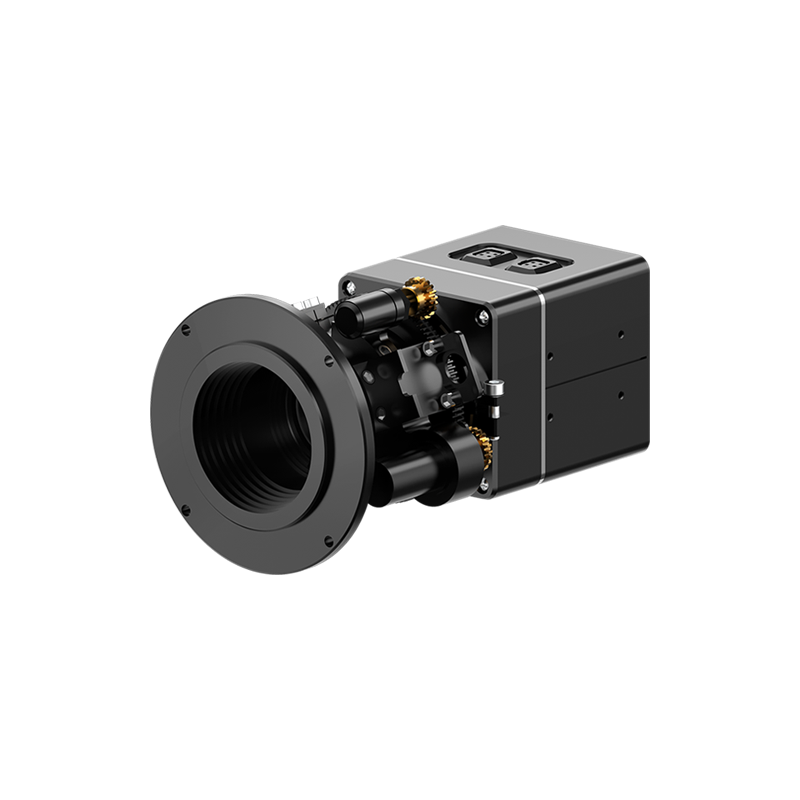

SN-TPC6404VT-Z new

Image Sensor

VOx uncooled focal plane array

Max Resolution

640 × 512 thermal resolution, upscaled output up to 1280 × 1024

Pixel Pitch

12 µm

Spectral Range

8–14 μm

NETD

≤ 20 mK

Lens Type

Motorized Varifocal lens

Focal Length

15–75 mm / 26–105 mm / 30–150 mm (optional)

Max. Aperture

F1.2 / F1.6 / F0.85–F1.2

Field of View (FOV)

15–75 mm: H: 29.9°–5.8°, V: 22.1°–4.4°
26–105 mm: H: 16.8°–4.2°, V: 13.4°–3.4°
30–150 mm: H: 14.5°–2.9°, V: 11.6°–2.3°

Focus Control

Motorized focus

AI Multi-Target Detection

Supports human, vehicle, and ship detection

Intelligent Analysis

Intrusion, smart motion detection, single-line crossing, double-line crossing, loitering, wrong-way detection, enter area, leave area; supports alarm triggering based on specified target types (human/vehicle)

People Counting

Supported

Smoking Detection

Supported

Fire Spot Detection

Supported

Resolution

Stream 1: 1280 × 1024, 1280 × 720, 640 × 512
Stream 2: D1, CIF

Frame Rate

Up to 25 fps

Bit Rate Control

CBR/VBR

Bit Rate

Stream 1: 100 Kbps to 8 Mbps
Stream 2: 10 Kbps to 6 Mbps

Smart Encoding

Supported

Image Adjustment

Brightness, Contrast, Sharpness

Scene Mode

Mirror

Pseudo-color Setting

Up to 17 colors (White-hot / Black-hot / Rainbow / Iron red / HSV /Bone / Cool / Copper / Fire-hot / Pink / Spring / Summer / Autumn / Winter / Jet / Flame / Rose -Bengal)

FFC Control

Auto / Manual

Noise Reduction

2D/3D DNR

Privacy Masking

Up to 4 configurable zones

Temperature Range

-20 °C to 150 °C (-4 °F to 302 °F)

Accuracy

±2 °C or ±2% (whichever is greater)

Temperature Detection

Supports 3 rule types (spot, line, and area); up to 20 rules, including 1 full-screen rule and 19 spot/line/area rules

Temperature Alarm

Temperature difference alarm, temperature threshold alarm, and temperature rise alarm

Temperature Display

Lower-left corner display; cursor-based display of maximum, minimum, and average temperature values

Response Time

≤ 30 ms

Alarm Triggers

IVS, temperature anomaly, motion detection, alarm input, network alarm, and disk alarm

Event Actions

Alarm recording, FTP upload, SMTP email notification, and alarm output

Protocols

IPv4/IPv6, HTTP/HTTPS, DNS, DDNS, DHCP, PPPoE, RTSP/ RTCP/RTP, TCP/UDP, NTP, ARP, UPnP, FTP, SMTP, QoS, ICMP, IGMP, SMTP, 802.1x, SNMP, Multicast

Application Programming Interface

ONVIF (Profile S/T/G/M), SDK, CGI

Max Concurrent Streams

10 channels

User/Host Level

32+ users, 3 levels: Administrator, Operator, and Media user

Web Viewer

Chrome, Firefox, Microsoft Edge, IE11 or earlier

OS / Firmware Protect

Encrypted firmware, Signed firmware

User Authentication

Digest authentication, Brute-force attack protection

Network Authentication

IEEE 802.1X (EAP-TLS)

Secure Communication

HTTPS, WSS (WebSocket Secure), SRTP

Access Control

IP-based access control, Auto logout

Data Protect

Encryption credentials

Audit

Access, system, and event logs

Supply Chain Security

SBOM

Hardware Security

Built-in FIPS 140-3 Level 3 Certified Secure Element

Network Interface

1 × RJ45 10/100 Mbps Ethernet port

Alarm Interface

1 input, 1 output

RS-485

1 × RS-485

CVBS Output

Supported

SD Card Slot

Built-in microSD card slot (up to 1 TB)

Reset Button

Supported

Language

English, Chinese, Traditional Chinese, Polish, Italian, Portuguese, Spanish, Russian, French, Czech, Hungarian, Japanese, Korean. Default: English

Power Supply

12 VDC ±25%

Power Consumption

Max 5 W

Operating Temperature

-40 °C to 60 °C (-40 °F to 140 °F)

Operating Humidity

≤ 90% RH (non-condensing)

Ingress Protection

N/A

Certifications

CE-EMC: EN 55032, EN IEC 61000-6-4, EN IEC 61000-3-2, EN 61000-3-3, EN 55035, EN 50130-4
FCC: 47 CFR Part 15, Subpart B

Material

Aluminium alloy

Dimensions

52 × 52 × 70 mm (2.05 × 2.05 × 2.76 in) without lens

Net Weight

Approx. 0.22 kg (0.49 lb) without lens

Thermal Lens

15 to 75 mm

26 to 105 mm

30 to 150 mm

Detection (Human: 1.8×0.5 m)

Up to 3,125 m (10,252.6 ft)

Up to 4,375 m (14,353.7 ft)

Up to 6,250 m (20,505.3 ft)

Detection (Vehicle: 4×1.5 m)

Up to 9,583 m (31,440.3 ft)

Up to 13,417 m (44,019 ft)

Up to 19,167 m (62,883.9 ft)

Recognition (Human: 1.8×0.5 m)

Up to 781 m (2,562.3 ft)

Up to 1,094 m (3,589.2 ft)

Up to 1,563 m (5,128.0 ft)

Recognition (Vehicle: 4×1.5 m)

Up to 2,396 m (7,860.9 ft)

Up to 3,354 m (11,003.9 ft)

Up to 4,792 m (15,721.8 ft)

Identification (Human: 1.8×0.5 m)

Up to 391 m (1,282.8 ft)

Up to 547 m (1,794.6 ft)

Up to 781 m (2,562.3 ft)

Identification (Vehicle: 4×1.5 m)

Up to 1,198 m (3,930.5 ft)

Up to 1,677 m (5502 ft)

Up to 2,396 m (7,860.9 ft)

Note:
Distances are calculated based on Johnson's Criteria.
Detection: Object must be covered by ≥1.5 pixels.
Recognition: Object must be covered by ≥6 pixels.
Identification: Object must be covered by ≥12 pixels.

Lens

15 to 75 mm

26 to 105 mm

30 to 150 mm

Temperature Measurement (1 ×1 m)

Up to 1,250 m (4,101.1 ft)

Up to  1,750 m (5,741.5 ft)

Up to  2,500 m (8,202.1 ft)

Temperature Measurement (0.2×0.2 m)

Up to 250 m (820.2 ft)

Up to  350 m (1,148.3 ft)

Up to  500 m (1,640.4 ft)

Fire Detection (1×1 m)

Up to 3,125 m (10,252.6 ft)

Up to  4,375 m (14,353.7 ft)

Up to  6,250 m (20,505.3 ft)

Fire Detection (0.2×0.2 m)

Up to 625 m (2,050.5 ft)

Up to  875 m (2,870.7 ft)

Up to  1,250 m (4,101.1 ft)

Note:
Values are for reference only. Actual detection range may vary with atmospheric conditions, target size, and installation environment.
