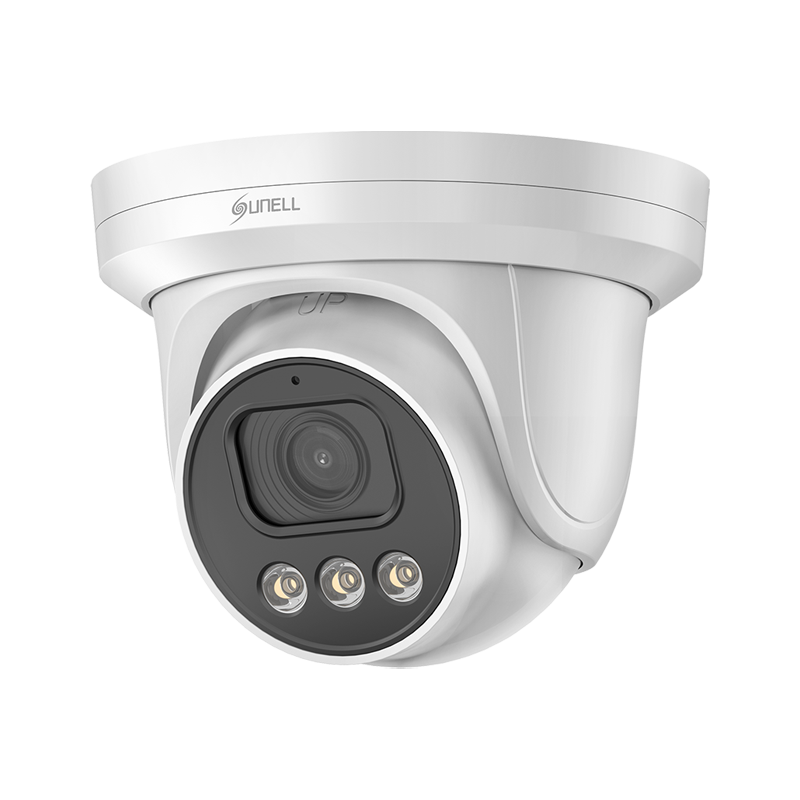

Image Sensor

1/2.8” Progressive Scan CMOS

Max. Resolution

5MP, 2592H) × 1944(V)

Electronic Shutter

Auto/Manual, 1/5 to 1/20,000s

Min. illumination

Color: 0.001 Lux @ (F1.0, AGC ON) , 0 Lux with light on

Day & Night

Fixed Filter

Wide Dynamic Range

True WDR

Angle Adjustment

Pan: 0˚ to 355˚, Tilt: 0˚ to 80˚, Rotation: 0 to 360˚

Lens Type

Fixed lens, Fixed focal

Iris

Fixed Iris

Focal Length

2.8 mm, 4 mm optional

Max. Aperture

F1.0

Field of View (FOV)

2.8 mm:

- H: 96.9°, V: 69.7°

4 mm:

- H: 78.2°, V: 57.1°

Lens

Detect

Observe

Recognize

Identify

2.8 mm

66 m (216.5 ft)

26.4 m (86.6 ft)

13.2 m (43.3 ft)

6.6 m (21.7 ft)

4 mm

78 m (255.9 ft)

31.2 m (102.4 ft)

15.6 m (51.2 ft)

7.8 m (25.6 ft)

DORI (Detect, Observe, Recognize, and Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances.

Illuminator Type

Warm light

Illumination Distance

Up to 30 m (98.4 ft)

Illumination On/Off Control

Auto/Manual

Multi-Object Detection

Supports face, human, vehicle detection and capture.

Supports multiple frame modes: Full Frame, Four-corner Frame, and Mosaic.

Intelligent Analysis

Intrusion, Single line crossing, Double line crossing, Loitering, Wrong-way detection, Illegal parking, and Smart motion detection

Support alarm triggering by specified target types (human and vehicle)

People Counting

Supported

Streaming Capability

3 Streams

Stream/Frame Rate

Stream1: 2592×1944, 2592×1520, 1920×1080, 1280×720 @25/30fps

Stream2: D1, VGA, CIF @25/30fps

Stream3: VGA, CIF, QVGA @25/30fps

Bit Rate Control

CBR/VBR

Bit Rate

Stream1: 200 Kbps to 12 Mbps

Stream2: 100 Kbps to 6 Mbps

Stream3: 100 Kbps to 3 Mbps

Smart Encoder

Supported

Region of Interest (ROI)

Off/On (8 Zone, Rectangle)

Audio Compression

G.711 A-law, G.711 μ-law, RAM PCM

Audio Bit Rate

64 Kbps (G.711), 128 Kbps (RAW_PCM)

Image Adjustment

Brightness, Sharpness, Contrast, Saturation adjustable

Scene Mode

Indoor, Outdoor, Mirror, Corridor mode

Exposure Mode

Auto, Manual, Shutter priority

White Balance

Auto, Tungsten, Fluorescent, Daylight, Shadow, Manual

Day/Night Setting

Auto, Day, Night, Timer

Noise Reduction

2D/3D DNR

Image Enhancement

HLC, BLC, Defog, WDR

Privacy Masking

4 areas

Alarm Triggers

IVS, Motion detection, Alarm input, Network alarm, Disk alarm, Day/Night switch alarm, Abnormal sound detection

Event Actions

Alarm record, Alarm output, FTP upload, SMTP upload, Audible alarm output

Protocols

IPv4/IPv6, HTTP/HTTPS, DNS, DDNS, DHCP, PPPoE, RTSP/ RTCP/RTP, TCP/UDP, NTP, ARP, UPnP, FTP, SMTP, QoS, ICMP, IGMP, SMTP, 802.1x, SNMP, Multicast

Interoperability

ONVIF (Profile S/T/G/M), SDK, CGI

Max Concurrent Streams

10 channels

User/Host Level

32+ users, 3 levels: Administrator, Operator, Media user

Security

IP address filter, HTTPS, Illegal login lock, IEEE 802.1x

Web Viewer

<IE11, Chrome, Firefox, Microsoft Edge

Network Interface

1 Ethernet (10/100 Base-T) RJ-45 Connector

Built-in Microphone

Supported

Audio Interface

1ch Input, 1ch Output

Alarm Interface

1ch Input, 1ch Output

SD Card Slot

Built-in, up to 1 TB

Reset Button

Supported

Language

English, Chinese, Traditional Chinese, Polish, Italian, Portuguese, Spanish, Russian, French, Czech, Hungarian, Japanese, Korean. Default: English

Power Supply

12 VDC (-10% to +25%)/PoE (802.3af)

Power Consumption

Typical: ≤ 2.2 W (12 VDC) / approx. 2.8 W (PoE)

Max (Light on): ≤ 4.1 W (12 VDC) / approx. 5.2 W (PoE)

Operating Temperature

-40°C to 60°C (-40°F to 140°F )

Operating Humidity

Less than 90% RH

Ingress Protection

IP66

Certifications

CE-EMC

- EN 55032, EN IEC 61000-6-4, EN IEC 61000-3-2, EN 61000-3-3, EN 55035, EN 50130-4

FCC 47 CFR Part 15 Subpart B

Material

Aluminum alloy + Plastic

Dimensions

φ118.2 × 93.9 mm (4.65 × 3.7 inch)

Net Weight

Approx. 535 g (1.18 lb)
