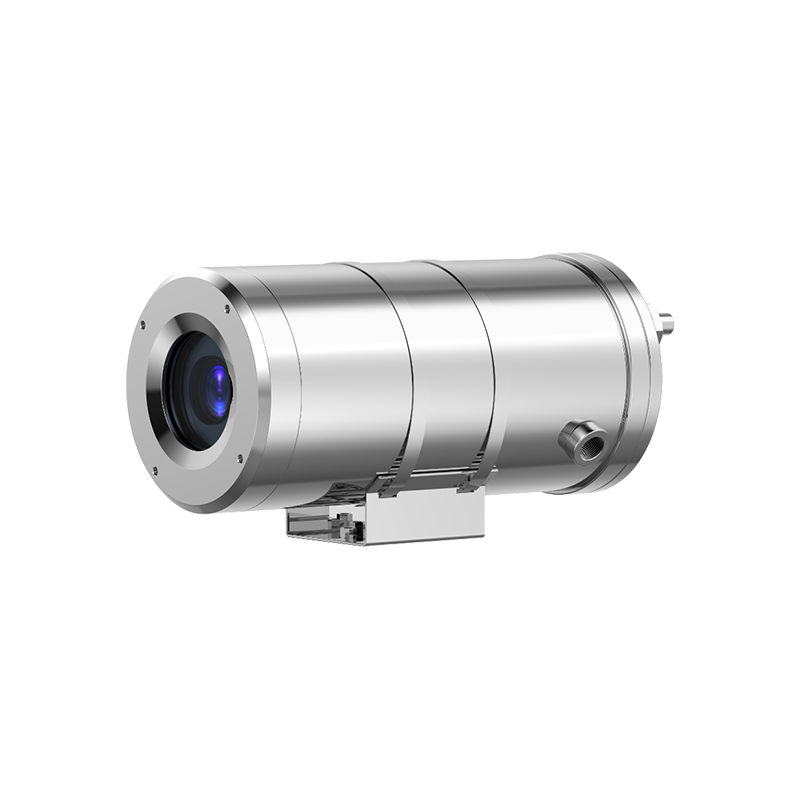

SN-CHP8650JAN-Z30-S-F

Image Sensor

1/2.8” Progressive Scan CMOS

Max Resolution

5MP, 2592(H) × 1944(V)

Shutter Speed

1/5 to 1/100,000s

Min Illumination

Color: 0.07 Lux @ (F1.6, AGC ON), B/W: 0.02 Lux @ (F1.6, AGC ON)

Day & Night

Auto (ICR)

Focal Length

5.3 to 159 mm, 30x Optical Zoom

Max. Aperture

F1.6 to F4.3

Field of View (FOV)

H: 56.3° to 2.7°, V: 42.4° to 2.0°

Digital Zoom

16x

Iris

Auto / Manual

Focus Control

Auto / Manual / Semi-automatic

AI Multi-Target Detection

- Supports face, human, and vehicle detection with snapshot capture
- Supports human and vehicle attribute analysis
- Supports tracking display modes: Full Frame, Four-Corner Frame, and Mosaic

Attribute Analysis

Human Attributes: Gender, age, glasses, hat, bag, upper clothing color & style, lower clothing color & style, reflective vest.Vehicle Attributes: Type, color, brand, orientation.

Intelligent Analysis

Intrusion detection, smart motion detection, single line crossing, double line crossing, loitering, wrong-way detection, illegal parking, area people limit, perimeter detection, running detection, fall detection, fight detection.
- Supports alarm triggering based on specified target types (human/vehicle)

Smoke and Flame Detection

Supported

People Counting

Supported

Number of Streams

3 Streams

Resolution

Stream 1: 2592 × 1944, 2592 × 1520, 1920 × 1080, 1280 × 720
Stream 2: D1, VGA, CIF
Stream 3: VGA, CIF, QVGA

Frame Rate

Up to 25/30 fps

Bit Rate Control

CBR/VBR

Bit Rate

Stream 1: 200 Kbps to 12 Mbps
Stream 2: 100 Kbps to 6 Mbps
Stream 3: 100 Kbps to 3 Mbps

Smart Encoding

Supported

Region of Interest (ROI)

Up to 8 zones

Audio Compression

G.711 A-law, G.711 μ-law, RAW_PCM

Audio Bit Rate

64 kbps (G.711), 128 kbps (RAW_PCM)

Image Adjustment

Brightness, Sharpness, Contrast, Saturation adjustable

Scene Mode

Indoor, Outdoor, Mirror

Exposure Mode

Auto, Manual, Shutter priority, Iris priority

White Balance

Auto, Tungsten, Fluorescent, Daylight, Shadow, Manual

Day/Night Setting

Auto, Day mode, Night mode, Timer

Noise Reduction

2D/3D DNR

Image Enhancement

HLC, BLC, Defog, WDR, Anti-shake

Wide Dynamic Range

True WDR (120 dB)

Privacy Masking

Up to 8 configurable zones

Alarm Triggers

IVS, Motion detection, Alarm input, Network alarm, Disk alarm, Day/Night switch alarm, Abnormal sound detection

Event Actions

Alarm record, FTP upload, Email notification, Snapshot, Alarm output, Audible alarm output

Protocols

IPv4/IPv6, HTTP/HTTPS, DNS, DDNS, DHCP, PPPoE, RTSP/ RTCP/RTP, TCP/UDP, NTP, ARP, UPnP, FTP, SMTP, QoS, ICMP, IGMP, SMTP, 802.1x, SNMP, Multicast

Application Programming Interface

ONVIF (Profile S/T/G/M), SDK, CGI

Max Concurrent Streams

10 channels

User/Host Level

32+ users, 3 user levels: Administrator, Operator, and Media User

Web Viewer

Chrome, Firefox, Microsoft Edge, IE11 or earlier

OS / Firmware Protect

Encrypted firmware, Secure boot, Signed firmware

User Authentication

Digest authentication, Brute-force attack protection

Network Authentication

IEEE 802.1X (EAP-TLS)

Secure Communication

HTTPS, WSS (WebSocket Secure), SRTP

Access Control

IP-based access control, Auto logout

Data Protect

Encryption credentials

Audit

Access, system, and event logs

Secure Storage

AES-256 encrypted SD card storage

Supply Chain Security

SBOM

Network Interface

1 × RJ45 10/100 Mbps Ethernet port

Audio Interface

1 input, 1 output

Alarm Interface

2 input, 1 output

SD Card Slot

Built-in microSD card slot (up to 1 TB)
*Memory card must be factory pre-installed and is not field-installable.

Reset Button

Built-in

Language

English, Chinese, Traditional Chinese, Polish, Italian, Portuguese, Spanish, Russian, French, Czech, Hungarian, Japanese, Korean. Default: English

Power Supply

100 to 240VAC

Power Consumption

Less than 15 W

Operating Conditions

Air cooling:
- Ambient temperature -20°C  to 150°C (-4°F to 302°F), water flow speed 0.3-0.6m³/h, internal body temperature of the body ≤ 35°C (95°F), pressure 0.1 to 0.2MPa
- Ambient pressure: 80Kpa to 106Kpa

Operating Humidity

< 95% RH, non-condensing

Ingress Protection

IP68

Material

Stainless steel 304

Dimensions

411 × 169 × 194 mm (16.18 × 6.65 × 7.64 inch)

Net Weight

Approx. 9.1 kg (20.06 lb)

Detect

104 to 3,120 m (341.2 to 10,236.2 ft)

Observe

41.6 to 1,248 m (136.5 to 4,094.5 ft)

Recognize

20.8 to 624 m (68.2 to 2,047.2 ft)

Identify

10.4 to 312 m (34.1 to 1,023.6 ft)
