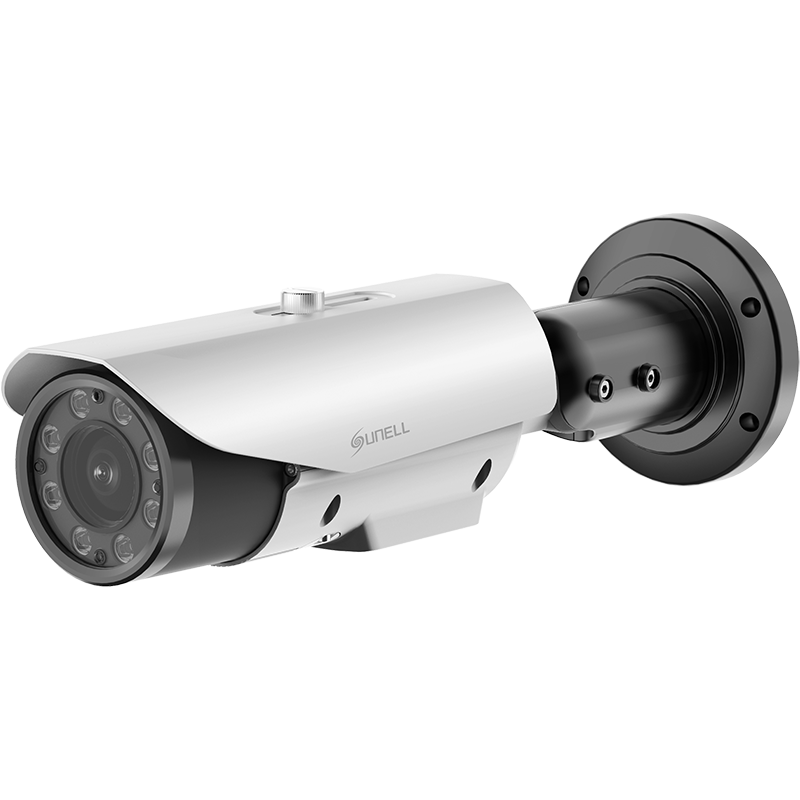

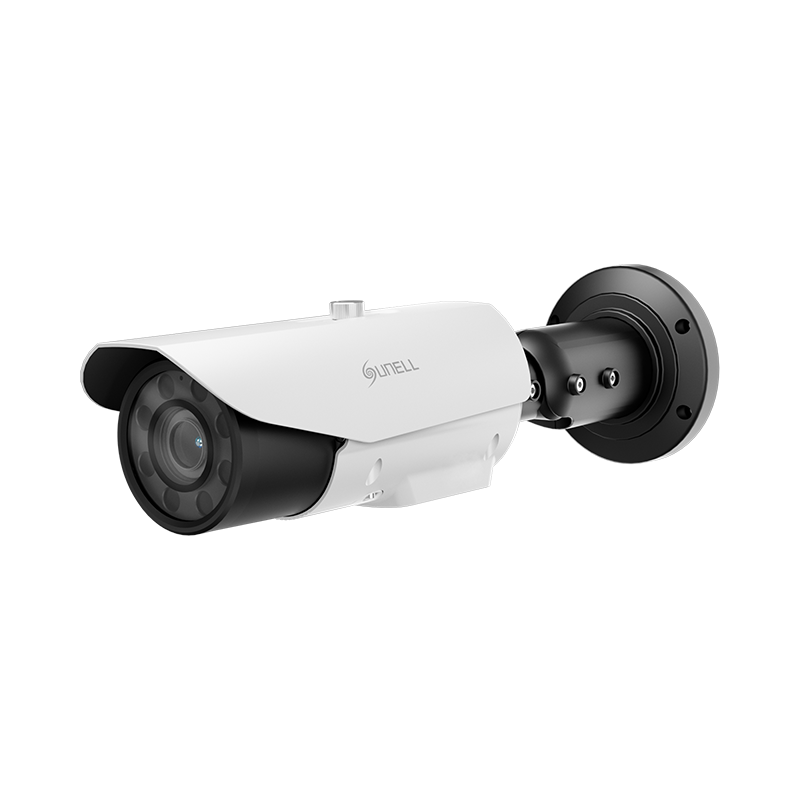

Image Sensor

1/1.8” Progressive Scan CMOS

Max Resolution

4MP, 2688(H) × 1520(V)

Shutter Speed

1/5 to 1/20,000s

Min Illumination

Color: 0.0025 Lux @ (F1.2, AGC ON), B/W: 0.0005 @ (F1.2, AGC ON), 0 Lux with IR on

Day & Night

Auto (ICR)

Angle Adjustment

Pan: 0˚ to 360˚, Tilt: 0˚ to 90˚, Rotation: 0˚ to 360˚

Lens Type

Motorized lens, motorized focus

Focal Length

8 to 32 mm, 10 to 50 mm optional

Max. Aperture

F1.6 / F1.3 to F1.4

Field of View (FOV)

8 to 32 mm

 - H: 41.1° to 14°, V: 23° to 7.9°

10 to 50 mm

 - H: 42.5° to 11.1°, V: 24.3° to 6.3°

Iris

Auto Iris

Type

IR

IR wavelength

850nm

Distance

8 to 32 mm

 - Up to 80 m (262.5 ft)

10 to 50 mm

 - Up to 120 m (393.7 ft)

Control

Auto/Manual

AI Multi-Target

- Supports face, human, and vehicle detection & capture

- Supports human and vehicle attribute detection

- Supports multiple frame modes: Full Frame, Four-Corner Frame, Mosaic

Attribute Extraction

Human Attributes: Gender, age, glasses, hat, bag, upper clothing color & style, lower clothing color & style, reflective vest

Vehicle Attributes: Type, color, brand, orientation

Intelligent Analysis

Intrusion detection, smart motion detection, single line crossing, double line crossing, loitering, wrong-way detection, area people limit, perimeter detection, illegal parking, running detection, fall detection, fight detection

- Supports accurate target classification (human/vehicle)

People Counting

Supported

Number of Streams

3 Streams

Resolution

Stream1: 2688×1520, 1920×1080, 1280×720

Stream2: D1, VGA, CIF

Stream3: VGA, CIF, QVGA

Frame Rate

Up to 50/60fps

Bit Rate Control

CBR/VBR

Bit Rate

Stream1: 200 kbps to 16 Mbps

Stream2: 100 kbps to 6 Mbps

Stream3: 100 kbps to 3 Mbps

Smart Encoding

Supported

Region of Interest (ROI)

Off/On (8 areas, Rectangle)

Audio Compression

G.711 A-law, G.711 μ-law, RAW_PCM

Audio Bit Rate

64 Kbps (G.711), 128 Kbps (RAW_PCM)

Image Adjustment

Brightness, Sharpness, Contrast, Saturation adjustable

Scene Mode

Indoor, Outdoor, Mirror, Corridor mode

Exposure Mode

Auto, Manual, Shutter priority

White Balance

Auto, Tungsten, Fluorescent, Daylight, Shadow, Manual

Day/Night Setting

Auto, Day, Night, Time

Noise Reduction

2D/3D DNR

Image Enhancement

HLC, BLC, Defog, WDR

Wide Dynamic Range

True WDR (120dB)

Privacy Masking

4 areas

Alarm Triggers

IVS, Motion detection, Alarm input, Network alarm, Disk alarm, Day/Night switch alarm, Abnormal sound detection

Event Actions

Alarm record, Alarm output, FTP upload, SMTP upload, Snapshot, Audible alarm output, Wiegand output

Protocols

IPv4/IPv6, HTTP/HTTPS, DNS, DDNS, DHCP, PPPoE, RTSP/ RTCP/RTP, TCP/UDP, NTP, ARP, UPnP, FTP, SMTP, QoS, ICMP, IGMP, SMTP, 802.1x, SNMP, Multicast

Application Programming Interface

ONVIF (Profile S/T/G/M), SDK, CGI

Max Concurrent Streams

10 channels

User/Host Level

32+ users, 3 levels: Administrator, Operator, Media user

Web Viewer

<IE11, Chrome, Firefox, Microsoft Edge

OS / Firmware Protect

Encrypted firmware, Signed firmware

User Authentication

Digest authentication, Prevent brute-force attack

Network Authentication

IEEE 802.1X (EAP-TLS)

Secure Communication

HTTPS, WSS (WebSocket Secure), SRTP

Access Control

IP-based access control, Auto logout

Data Protect

Encryption credentials

Audit

Access / System / Event Log management

Secure Storage

SDcard partition encrypt (AES-256), Secure element

Supply Chain Security

SBOM

Network Interface

1 × Ethernet (10/100 Base-T), RJ-45 connector

Built-in Microphone

Supported

Built-in Speaker

Supported

Audio Interface

1ch Input, 1ch Output

Alarm Interface

1ch Input, 2ch Output

RS-485

1 RS-485

SD Card Slot

Built-in, up to 1 TB

Reset Button

Supported

Language

English, Chinese, Traditional Chinese, Polish, Italian, Portuguese, Spanish, Russian, French, Czech, Hungarian, Japanese, Korean. Default: English

Power Supply

12 VDC (-15% to +25%) / PoE (802.3af)

Power Consumption

Max 13.2 W

Operating Temperature

-40°C to 60°C (-40°F to 140°F )

Operating Humidity

Less than 95% RH

Ingress Protection

IP66, IK10

Certifications

CE-EMC

 - EN 55032, EN IEC 61000-6-4, EN IEC 61000-3-2, EN 61000-3-3, EN 55035, EN 50130-4

FCC 47 CFR Part 15 Subpart B

Material

Aluminum alloy

Dimensions

φ110 × 356.3 mm (φ4.33 × 14.03 inch)

Net Weight

Approx. 1.72 kg (3.79 lb)

Detect

8 to 32 mm: 142 m to 402 m (465.88 ft to 1,318.90 ft)

10 to 50 mm: 147 m to 553 m (482.28 ft to 1,814.30 ft)

Observe

8 to 32 mm: 56.8 m to 160.8 m (186.35 ft to 527.31 ft)

10 to 50 mm: 58.8 m to 221.2 m (192.91 ft to 725.07 ft)

Recognize

8 to 32 mm: 28.4 m to 80.4 m (93.18 ft to 263.65 ft)

10 to 50 mm: 29.4 m to 110.6 m (96.46 ft to 362.86 ft)

Identify

8 to 32 mm: 14.2 m to 40.2 m (46.59 ft to 131.89 ft)

10 to 50 mm: 14.7 m to 55.3 m (48.23 ft to 181.45 ft)
