System Parameters | |
Operating System | Linux |
RAM | 64 MB |
ROM | 128 MB |
Display Parameters | |

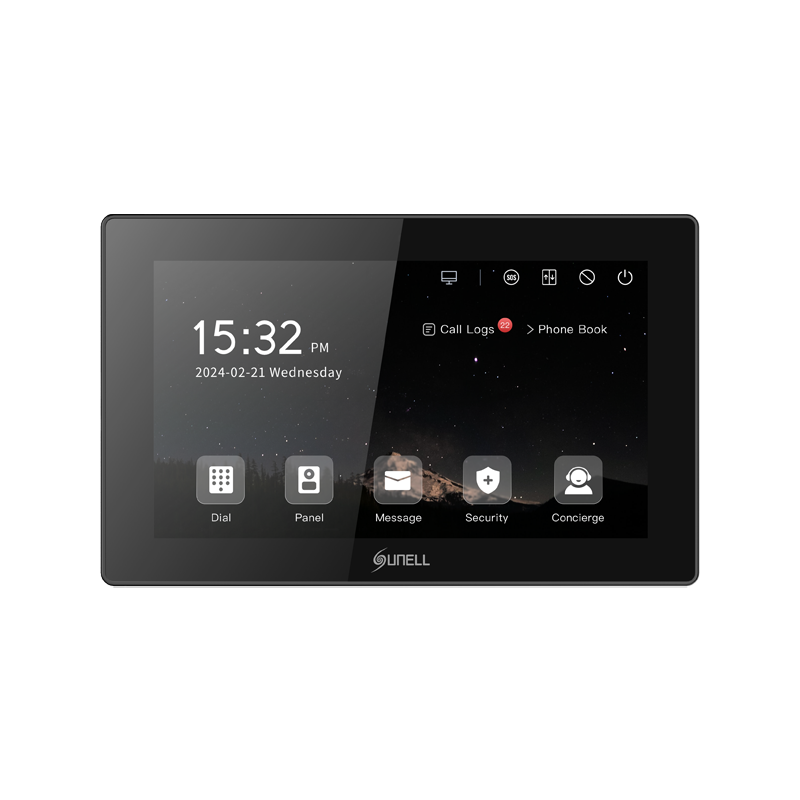

Display Size | 10.1-inch TFT LCD |
Display Type | Capacitive touch screen |
Resolution | 1024 × 600 |
Video Parameters | |
Video Compression | H.264 |
Audio Parameters | |
Audio Compression | G.711 |
Audio Input | Built-in microphone |
Audio Output | Built-in speaker |
Echo Cancellation | Supported |
DTMF | RFC2833 |
Network | |
Protocols | ONVIF, SIP, UDP, TCP, RTP, RTSP, NTP, DNS, HTTP, DHCP, IPV4, ARP, ICMP |
Interface | |
Network Interface | 1 × RJ45 (10/100 Mbps self-adaptive) |
RS-485 | 1 |
Alarm Input | 8 |
Doorbell Input | 8 (share alarm input ports) |
Power Output | 1 (12 V DC / 100 mA) |
General | |
Power Supply | PoE (IEEE 802.3af) |
Power Consumption | Standby: ≤ 1.5 W, Max: ≤ 9 W |
Operating Temperature | -10 °C to 55 °C (-14 °F to 131 °F) |
Storage Temperature | -40 °C to 70 °C (-40 °F to 158 °F) |
Operating Humidity | 10% to 90% RH (non-condensing) |
Ingress Protection | N/A |
Material | Plastic front panel |
Dimensions | 270 × 168 × 15 mm (10.63 × 6.61 × 0.59 in) |
Mounting | Surface mount |
-
