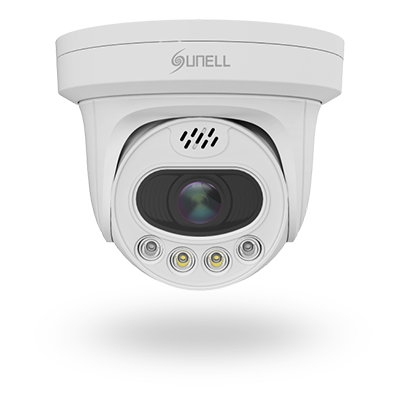

5MP Smart Dual Illumination Eyeball Network Camera

SN-IPR8050CQAS-B
  • 1/2.8” progressive scan CMOS

  • Max. 5MP(2592×1944) @25/30fps resolution

  • 4mm fixed lens

  • WDR, 3D DNR, ROI, HLC, BLC, Defog

  • Support face, human and vehicle detection

  • Intelligence analysis: intrusion, single line crossing, double line crossing, loitering, wrong way, people counting

  • Built-in IR LED and warm lights, illumination distance up to 30m

  • 1/1 audio input/output, 1/1 alarm input/output

  • Built-in microphone and speaker

  • Built-in micro SD slot, IP66, PoE

Specification of 5MP Smart Dual Illumination Eyeball Network Camera

Camera

Image Sensor

1/2.8” Progressive Scan CMOS

Electronic Shutter

Auto/Manual, 1/5 ~ 1/20,000s

Min. illumination

Color: 0.03 Lux @ (F1.6, AGC ON) ,

B/W: 0 Lux @ (IR LED ON)

S/N Ratio

55dB

Day/Night

Auto(ICR)/Day/Night/Time

Wide Dynamic Range

True WDR

Illumination Distance

IR distance up to 30m (98.4 ft)

Warm distance up to 30m (98.4 ft)

Illumination On/Off Control

Auto/Manual

Pan/Tilt/Rotation  Range

Pan: 0˚ ~ 360˚, Tilt: 0˚ ~ 90˚, Rotation: 0˚ ~ 360˚

Lens

Lens Type

Fixed focus

Iris

Fixed Iris

Focal Length

4 mm

F Number

F1.6

Angle of View

H: 75.7°, V: 54.6°

Video

Max. Resolution

5MP (2592×1944)

Streaming Capability

3 Streams

Stream/Frame Rate

Stream1: 2592×1944, 2592×1520, 1920×1080, 1280×720 @ 25/30fps

Stream2: D1, VGA, CIF @ 25/30fps

Stream3: VGA, CIF, QVGA @25/30fps

Bit Rate Control

CBR/VBR

Bit Rate

Stream1: 200kbps~12Mbps

Stream2: 100kbps~6Mbps

Stream3: 100kbps~3Mbps

Image Enhancement

HLC / BLC / Defog / WDR

White Balance

Auto

Gain Control

Auto/Manual

Noise Reduction

2D/3D DNR

Aisle Mode

Support

Smart Illumination

Support

Mirror

Support

Region of Interest

Off/On (8 Zone, Rectangle)

Motion Detection

Support

Privacy Masking

Support

Smart Function

Smart Function

Support face, human, vehicle detection

Intelligent Detection

Intrusion, Single line crossing, Double line crossing, Loitering, Wrong way (the five functions support the accurate detection of vehicle and human), People counting

Audio

Compression

G.711, RAW_PCM

Bit Rate

8kbps, 16kps, 64kbps

Network

Protocols

IPv4/IPv6, 802.1x, HTTP, HTTPS, TCP/IP, UDP/IP, RTSP, DHCP, NTP, RTCP/RTP, PPPoE, SMTP, DNS, UPnP, FTP, ARP, SNMP, TLS/SSL

Interoperability

ONVIF, SDK, CGI

Streaming Method

Unicast

Max. User Access

10 Users

Web Viewer

<IE11, Chrome, Firefox, Microsoft Edge

Management Software

SunView

Interface

Network Interface

1 Ethernet (10/100 Base-T) RJ-45 Connector

Audio Interface

1ch Input, 1ch Output

Built-in Microphone

Yes

Speaker

Yes

Alarm Interface

1ch Input, 1ch Output

Reset Button

Support

Built-in Micro SD Slot

Yes, up to 256GB

Electrical

Power Supply

DC12V/POE (IEEE 802.3af)

Power Consumption

Max 7.5 W

Operating Temperature

-40°C ~ 55°C (-40°F ~ 131°F )

Operating Humidity

Less than 90% RH

Ingress Protection

IP66

Certifications

CE/FCC

Casing

Metal + Plastic

Dimensions

φ140 × 119.2 mm (φ5.5 × 4.69 inch)

Net Weight

0.9 kg (1.98 lb)



Dimensions of 5MP Smart Dual Illumination Eyeball Network Camera
