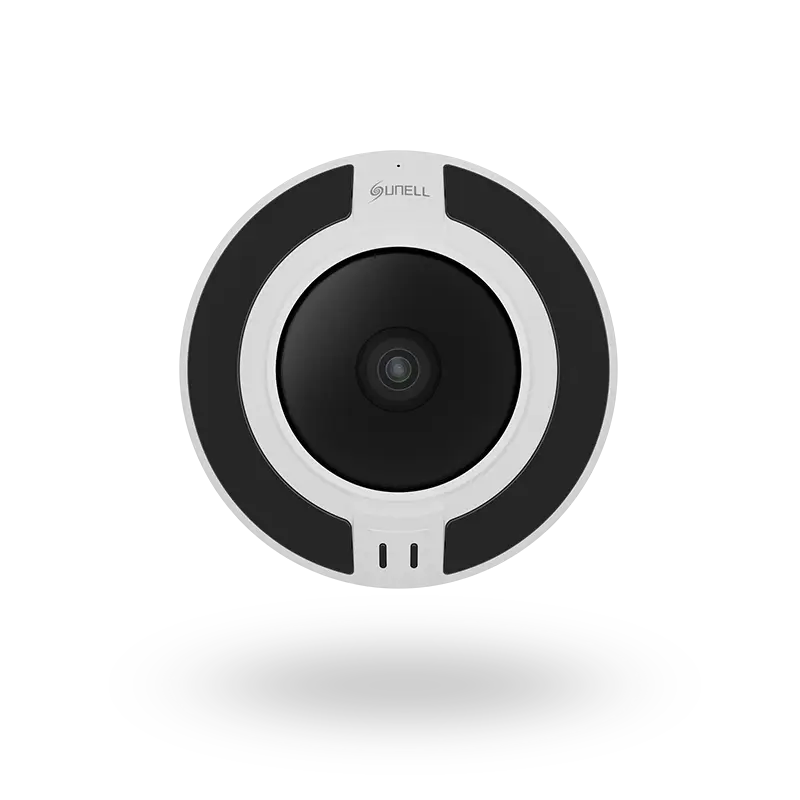

6MP Fisheye Network Camera

Image Sensor

1/2.8”Progressive Scan CMOS

Max. Resolution

2560(H) × 2560(V)

Electronic Shutter

Auto/Manual, 1/5 to 1/100,000s

Min. illumination

Color: 0.01 Lux @ (F2.0, AGC ON), B/W: 0 Lux with IR

Day & Night

IR cut filter

Wide Dynamic Range

True WDR

Lens

Lens Type

Fixed Lens

Iris

Fixed Iris

Focal Length

1.5 mm

Max. Aperture

F2.0

Field of View (FOV)

180° × 180°

Illuminator

Illuminator Type

IR LED

Illumination Distance

Up to 15 m (49.2 ft.)

Illumination On/Off Control

Auto/ Manual

Intelligent   Analytics

Multi-Object Detection

Supports face, human, vehicle detection and capture

Intelligent Analysis

Intrusion, Single line crossing, Double line crossing, Loitering, Wrong-way, and Smart motion detection.

(Support available only in single-channel mode)

Support alarm triggering by specified target types (human and vehicle).

People Counting

Up to 4 detection areas

Heat Map

Support

Video and Audio

Streaming Capability

2 Streams

Main Stream

One-Channel:

- Fisheye View: 2560×2560, 2048×2048, 1920×960, 1280×1280, 1280×960 @25/30fps

- 180° Panorama View: 2560×640, 1920×480, 1280×960 @25/30fps

- 360° Panorama View: 2560×1280, 1920×960, 1280×960 @25/30fps

- 4PTZ View: 2048×1536, 1920×1440, 1280×960 @25/30fps

- Fisheye + 3PTZ View: 2048×1536, 1920×1440, 1280×960 @25/30fps

Multi-Channel: 1520×1520, 1280×960, 960×960, 720×720,  640×640 @25/25fps

Sub Stream

One-Channel:

- Fisheye View: D1, 640×640, 480×480 @25/30fps

- 180° Panorama View: 832×208, D1 @25/30fps

- 360° Panorama View: 640×640, D1 @25/30fps

- 4PTZ View: 640×480, D1, 320×240 @25/30fps

- Fisheye + 3PTZ View: 640×480, D1, 320×240 @25/30fps

Multi-Channel:  640×640, D1 @25/30fps

Bit Rate Control

CBR/VBR

Bit Rate

One-Channel:

- Stream1: 200Kbps to 16Mbps

- Stream2: 100Kbps to 6Mbps

Multi-Channel:

- Stream1: 100Kbps to 12Mbps

- Stream2: 100Kbps to 6Mbps

Smart Encoder

Support

Region of Interest (ROI)

Support (Single-channel and fisheye mode)

Audio Compression

G.711 A-law, G.711 μ-law, RAM PCM

Audio Bit Rate

64 Kbps (G.711), 128 Kbps (RAW_PCM)


Image Adjustment

Brightness, Sharpness, Contrast, Saturation adjustable

Scene Setting

Indoor, Outdoor

Exposure Mode

Auto, Manual, Shutter priority

White Balance

Auto, Tungsten, Fluorescent, Daylight, Shadow, Manual

Day/Night Setting

Auto, Day, Night, Timer

Noise Reduction

2D/3D DNR

Image Enhancement

WDR, HLC, BLC, Defog

Privacy Masking

Support (Single-channel and fisheye mode)

Fisheye Display

Mount Type

Ceiling Mount, Wall Mount, Table Mount

Decoding Mode

On-board Dewarping/Client-side Dewarping

Display Mode

12 display modes in total

Client-side Dewarping:

- 180° panorama view, 360° panorama view, 360° panorama + PTZ, 360° panorama + 3PTZ, 360° panorama + 6PTZ, 360° panorama + 8PTZ, Fisheye view, Fisheye + 3PTZ, Fisheye + 8PTZ, 4PTZ, 2PTZ, Fisheye + 1PTZ + 360°

On-board Dewarping:

- Fisheye view, Double panorama view, 4PTZ, Single panorama view, Fisheye + 3PTZ

Event

Alarm Triggers

IVS, Motion detection, Alarm input, Network alarm, Disk alarm, Day/Night switch alarm, Abnormal sound detection

Events Action

Alarm record, Alarm output, FTP upload, SMTP upload, Audible alarm output

Network

Protocols

IPv4/IPv6, HTTP/HTTPS, DNS, DDNS, DHCP, PPPoE, RTSP/ RTCP/RTP, TCP/UDP, NTP, ARP, UPnP, FTP, SMTP, QoS, ICMP, IGMP, SMTP, 802.1x, SNMP, Multicast

Interoperability

ONVIF (Profile S/T/G/M), SDK, CGI

User/Host Level

Up to 10 users, 3 levels: Administrator, Operator, Media user

Security

IP address filter, encrypted HTTPS, Illegal login lock, IEEE 802.1x

Web Viewer

<IE11, Chrome, Firefox, Microsoft Edge

Interface

Network Interface

1 Ethernet (10/100 Base-T) RJ-45 Connector

Built-in Microphone

Support

Audio Interface

1ch Input, 1ch Output

Alarm Interface

1ch Input, 1ch Output

SD Card Slot

Built-in, up to 1TB

Reset Button

Support

General

Language

English, Chinese, Polish, Italian, Portuguese, Spanish, Russian, French, Czech, Hungarian. Default: English

Power Supply

DC12V (-15% to +20%)/PoE (IEEE 802.3af)

Power Consumption

Max 9 W

Operating Temperature

-30°C to 60°C (-22°F to 140°F )

Operating Humidity

Less than 90% RH

Ingress Protection

IP66

Certifications

CE-EMC (EN 55032:2015+A1:2020, EN 55035:2017+A11:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-6-3:2021, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A2:2021)

FCC (FCC 47 CFR 15, Subpart B, ANSI C63.4-2014)

Material

Aluminum alloy body, bubble: plastic

Dimensions

Φ130.1 × 38.3 mm ( Φ5.12 × 1.51 inch)

Net Weight

0.5 kg (1.10 lb)
