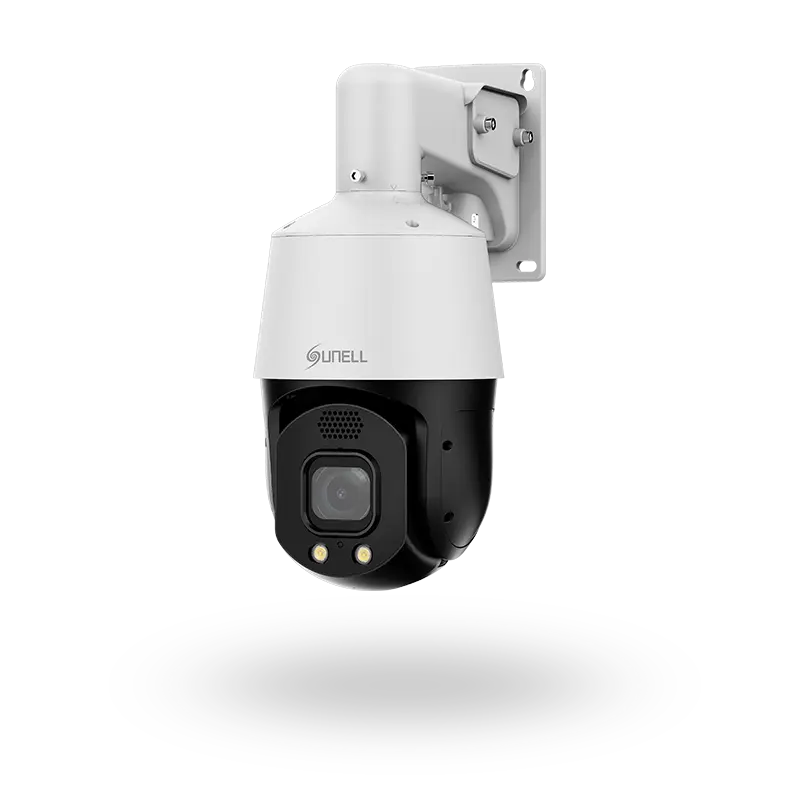

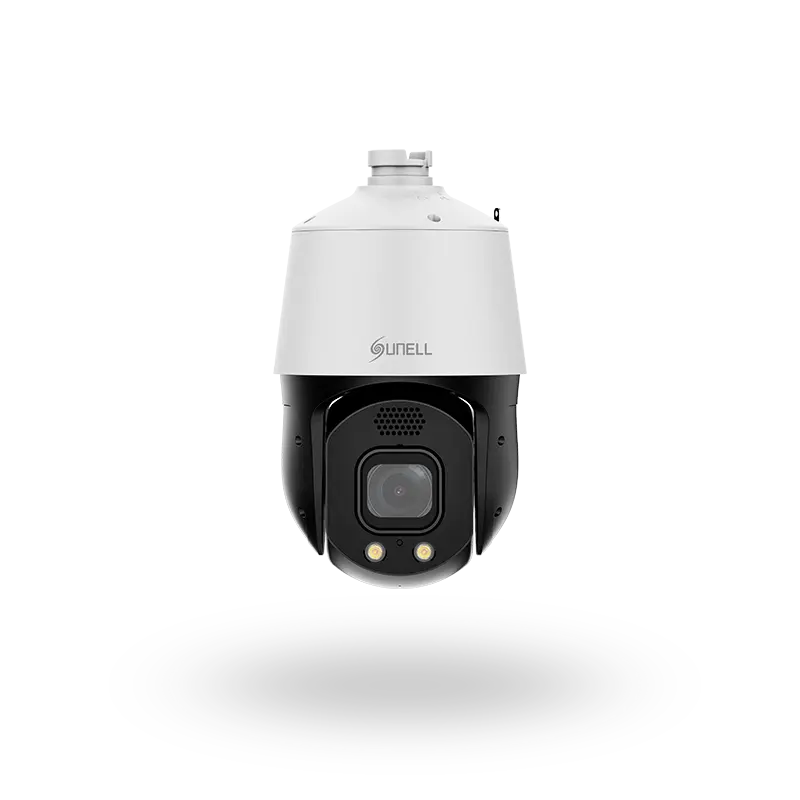

5-inch 4MP Smart Full-color Network PTZ Camera

SN-IPS8641YDS-Z30
  • 1/1.8” progressive scan CMOS

  • 30x optical zoom,16x digital zoom

  • Support face, human and vehicle detection and capture

  • Support smoke and fire detection as well as smart motion detection

  • Auto tracking and perimeter protection based on deep learning

  • Intelligent analysis: intrusion, single line crossing, double line crossing, loitering, wrong-way, illegal parking and people counting

  • True WDR,3D DNR, ICR, Optical Defog and EIS

  • Built-in Microphone and Speaker

  • Smart Illumination, Up to 250 m IR and 60 m warm light distance

  • Built-in SD card slot, up to 256GB

  • IP66

Specification of 5-inch 4MP Smart Full-color Network PTZ Camera

Camera

Image Sensor

1/1.8”Progressive Scan CMOS

Max. Resolution

2592(H) × 1520(V)

Electronic Shutter

Auto/Manual, 1/5 to   1/20,000s

Min. illumination

Color: 0.007 Lux @ (F1.6, AGC ON), B/W: 0.002 Lux @ (F1.6, AGC ON), 0 Lux with light

Day & Night

Auto (ICR)

Lens

Focal Length

7 to 210 mm

Max. Aperture

F1.61 to F5.15

Angle of View

H: 59.2° to 2.5°, V: 34.6° to 1.4°

Optical Zoom

30x

Digital Zoom

16x

Iris Control

Auto/Manual

Focus Control

Auto/Manual/Semi-automatic

DORI Distance

Lens

Detect

Observe

Recognize

Identify

7 mm

95 m (311.7 ft)

38 m (136.5 ft)

19 m (62.3 ft)

9.5 m (31.2 ft)

210 mm

2,240 m (7,349.1 ft)

896 m (2,939.6 ft)

448 m (1,469.8 ft)

224 m (734.9 ft)

Illuminator

Illuminator Type

IR, Warm light

Illumination Distance

IR distance up to 250 m (820.21 ft)

Warm lights distance up to 60 m (196.85 ft)

Illuminator On/Off Control

Auto/Manual

PTZ

Pan/Tilt Range

Pan: 0° to 360°  endless, Tilt: -15° to +90°

Pan Speed

Pan speed: 0.1°  to 180°/s, preset speed: 180°/s

Tilt Speed

Tilt speed: 0.1°  to 90°/s, preset speed: 90°/s

Presets

400

Patrol Scan

6 Track, 12 Scan, 12 Patrol (up to 32 presets each patrol)

Power-Off Memory

Support

3D Positioning

Support

PTZ Status Display

Support

Idle Motion

The time can be set (1-240 minutes), and functions such as preset positions, patrols, scans, and tracks can be run.

Video

Streaming Capability

3 Streams

Stream/Frame Rate

Stream1: 2592×1520, 2304×1296, 1920×1080, 1280×720 @25/30fps

Stream2: D1, VGA, CIF @25/30fps

Stream3: VGA, CIF, QVGA @25/30fps

Bit Rate Control

CBR/VBR

Bit Rate

Stream1: 500kbps to 16Mbps

Stream2: 200kbps to 12Mbps

Stream3: 200kbps to 12Mbps

Smart Encoder

Support

Region of Interest (ROI)

Support

Audio

Compression

G.711: 64Kbps, RAW_PCM: 128Kbps

Sound Warning

Sound warning alarm: Customizable voice and alarm sounds


Image Adjustment

Brightness, Sharpness, Contrast, Saturation

Mirror

Support

Exposure Mode

Auto/Manual

White Balance

Auto/Manual

Day/Night Setting

Auto, Day, Night, Time

Noise Reduction

2D/3D DNR

Image Enhancement

HLC, BLC, Defog, EIS

Wide Dynamic Range

True WDR

S/N Ratio

55dB

Motion Detection

Support

Privacy Masking

Support 40 zones, mask color configurable

Smart Function

Multi-Object Detection

Support face, human, vehicle detection and capture

Intelligent Analysis

Intrusion, Single line crossing, Double line crossing, Loitering, Wrong-way, Illegal parking, Smart motion detection

(support the accurate detection of vehicle and human)

Smoke and Fire Detection

Support

People Counting

Support

Smart Tracking

Support

Network

Protocols

IPv4, IPv6, TCP/IP, HTTP, HTTPS, RTSP/RTP/RTCP, IGMP/Multicast, SMTP, DHCP, NTP, DNS, DDNS, QoS, SNMP, 802.1X, UDP, ICMP, ARP, TLS

Interoperability

ONVIF, SDK, CGI

Streaming Method

Multicast

Max. User Access

10 Users

Web Viewer

<IE11, Chrome, Firefox, Microsoft Edge

Language

English, Chinese, Polish, Italian, Portuguese, Spanish, Russian, French, Czech, Hungarian. Default: English

Interface

Network Interface

1 Ethernet (10/100 Base-T) RJ-45 Connector

Built-in Microphone

Support

Built-in Speaker

Support

Audio Interface

1ch Input, 1ch Output

Alarm Interface

2ch Input, 2ch Output

Reset Button

Support

SD Card Slot

Built-in, up to 256GB

Electrical

Power Supply

24VAC/36VDC/PoE+ (IEEE 802.3at), Standard   Equipped: 36VDC

Power Consumption

Less than 25 W (illuminator + speaker + PTZ working + glass defogging )

Operating Temperature

-40°C to 60°C (-40°F to 140 °F)

Operating Humidity

Less than 90% RH

Ingress Protection

IP66

Certifications

CE/FCC

Casing

Metal

Dimensions

φ176.0 × 303.9 mm (φ6.93 × 11.96 inch)

Net Weight

4 Kg (8.82 lb)
