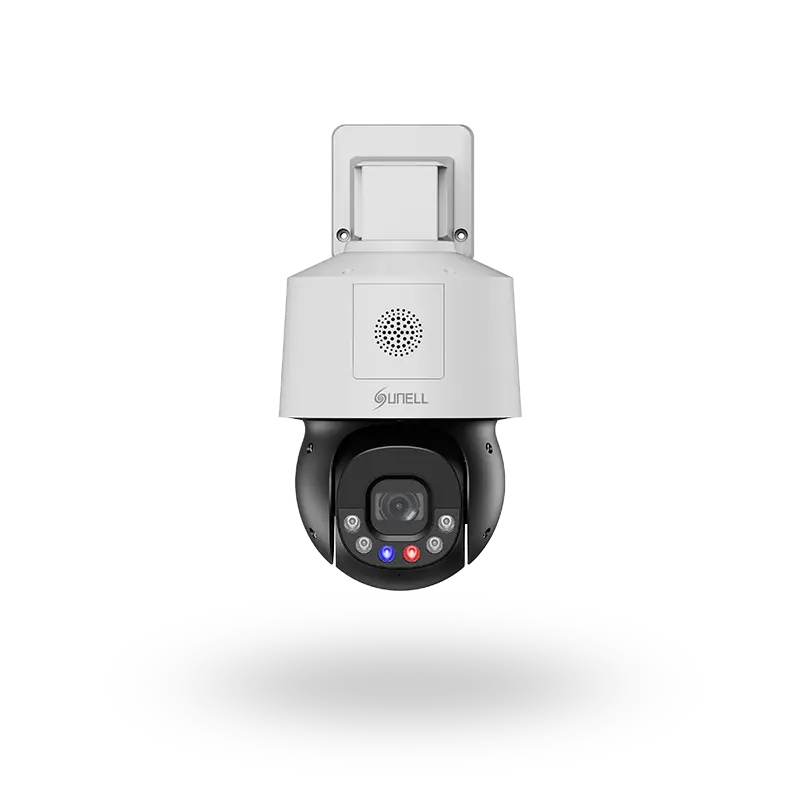

3-inch 5MP Active Deterrence Network PTZ Camera

Image Sensor

1/2.7”Progressive Scan CMOS

Max. Resolution

2880(H)×1620(V)

Electronic Shutter

Auto/Manual, 1/5 to 1/20,000s

Min. illumination

Color: 0.01 Lux @ (F1.6, AGC ON), B/W: 0.001 Lux @ (F1.6, AGC ON), 0 Lux with light

Day & Night

IR cut filter

Lens

Focal Length

2.7 to 13.5mm

Max. Aperture

F1.66 to F3.03

Angle of View

H: 111.5° to 32.3°, V: 57.5° to 17.9°

Optical Zoom

5x

Digital Zoom

16x

Focus Control

Auto/Manual/Semi-automatic

Lens

Detect

Observe

Recognize

Identify

2.7 mm

70 m (229.7 ft)

28 m (91.9 ft)

14 m (45.9 ft)

7 m (23.0 ft)

13.5 mm

205 m (672.6 ft)

82 m (269.0 ft)

41 m (134.5 ft)

20.5 m (67.3 ft)

Illuminator Type

IR, Warm light

Illumination Distance

IR distance up to 50 m (164.0 ft)

Warm lights distance up to 30 m (98.4 ft)

Illuminator On/Off Control

Auto/Manual

PTZ

Pan/Tilt Range

Pan: 0° to 355° endless, Tilt: -20° to +90°

Pan Speed

Pan speed: 0.1° to 60°/s, preset speed: 60°/s

Tilt Speed

Tilt speed: 0.1° to 50°/s, preset speed: 50°/s

Presets

400

Patrol Scan

6 Track, 12 Scan, 12 Patrol (up to 32 presets per patrol)

Power-Off Memory

Support

3D Positioning

Support

PTZ Status   Display

Support

Idle Motion

The time can be set (1-240 minutes), and functions such as preset positions, patrols, scans, and tracks can be run.

Video

Streaming Capability

3 Streams

Stream/Frame Rate

Stream1: 2880×1620, 2560×1440, 2304×1296, 1920×1080, 1280×720 @25/30fps

Stream2: D1, VGA, 640×360, CIF, QVGA @25/30fps

Stream3: VGA, CIF, QVGA @25/30fps

Bit Rate Control

CBR/VBR

Bit Rate

Stream1: 200kbps to 12Mbps

Stream2: 100kbps to 6Mbps

Stream3: 100kbps to 3Mbps

Smart Encoder

Support

Region of Interest (ROI)

Support

Audio

Compression

G.711: 64Kbps, RAW_PCM: 128Kbps

Sound Warning

Sound warning alarm: Customizable voice and alarm sounds


Image Adjustment

Brightness, Sharpness, Contrast, Saturation

Mirror

Support

Exposure Mode

Auto/Manual

White Balance

Auto/Manual

Day/Night Setting

Auto, Day, Night, Time

Noise Reduction

2D/3D DNR

Image Enhancement

HLC, BLC, Defog, Anti-shake

Wide Dynamic Range

True WDR

S/N Ratio

55dB

Motion Detection

Support

Privacy Masking

Support 40 zones, mask color configurable

Smart Function

Multi-Object Detection

Support face, human, vehicle detection and capture

Intelligent Analysis

Intrusion, Single line crossing, Double line crossing, Loitering, Wrong-way, Illegal parking,

(support the accurate detection of vehicle and human)

Smoke and Fire Detection

Support

People Counting

Support

Smart Motion Detection

Support

Smart Tracking

Support

Network

Protocols

IPv4, IPv6, TCP/IP, HTTP, HTTPS, RTSP/RTP/RTCP, IGMP/Multicast, SMTP, DHCP, NTP, DNS, DDNS, QoS, SNMP, 802.1X, UDP, ICMP, ARP, TLS

Interoperability

ONVIF, SDK, CGI

Streaming Method

Multicast

Max. User Access

10 Users

Web Viewer

<IE11, Chrome, Firefox, Microsoft Edge

Language

English, Chinese, Polish, Italian, Portuguese, Spanish, Russian, French, Czech, Hungarian. Default: English

Interface

Network Interface

1 Ethernet (10/100 Base-T) RJ-45 Connector

Built-in Microphone

Support

Built-in Speaker

Support,   Max sound transmission distance of 60m (196.85 ft) (45-48 dB)

Alarm Interface

1ch Input, 1ch Output

SD Card Slot

Built-in, up to 512GB

Reset Button

Support

Electrical

Power Supply

12VDC/PoE+ (IEEE 802.3at)

Power Consumption

Less than 19.5W (illuminator + red and blue warning light + speaker + PTZ working + glass defogging )

Operating Temperature

-30°C to 60°C (-22°F to 140 °F)

Operating Humidity

Less than 90% RH

Ingress Protection

IP66

Certifications

CE/FCC

Casing

Metal + Plastic

Dimensions

174.4 × 138.8 × 270.9 mm (6.87 × 5.46 × 10.67 inch) of wall mount

Net Weight

1.28Kg (2.82lb)
