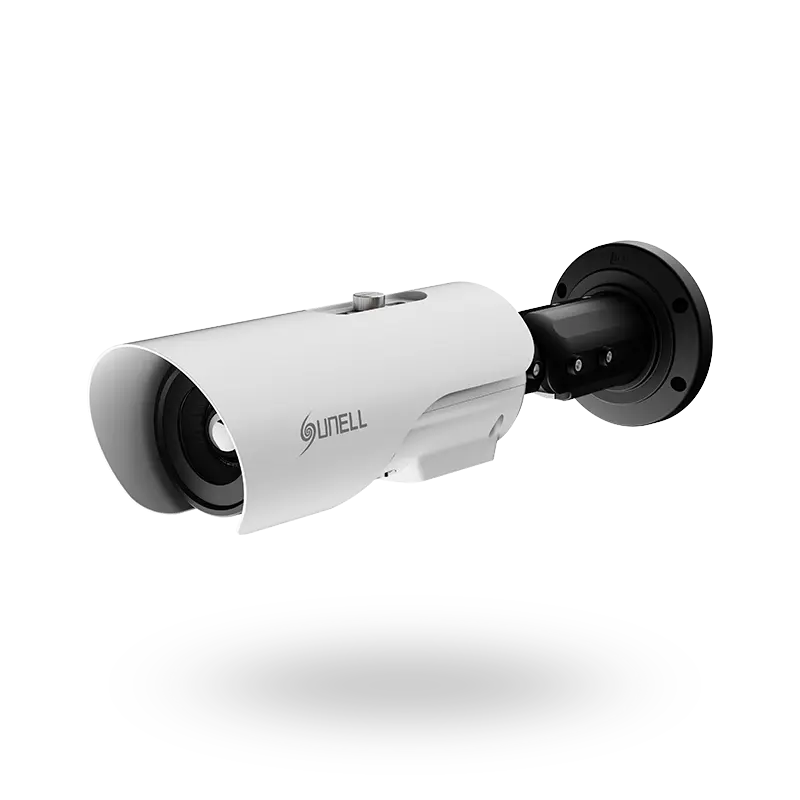

Thermal Imaging Bullet Network Camera

Image Sensor

Vanadium Oxide Uncooled Focal Plane Arrays

Resolution

Sensor is 400×300. Image can be scaled up to 704×576

Pixel Pitch

17µm

NETD

≤ 40mK

Spectral Range

8 to 14µm

Image Setting

Brightness, Sharpness, Contrast, Mirror, FFC control, 2D/3D DNR

Pseudo-color Setting

White-hot/Black-hot/Rainbow/Ironbow etc. up to 17 modes

Focus Control

Fixed lens, Manual focus

Focal Length

8mm

15mm

25mm

35mm

50mm

Aperture

F1.0

F1.0

F1.0

F1.0

F1.0

Angle of View

H: 46°,

V: 35.3°

H: 25.5°,

V: 19.2°

H: 15.4°,

V: 11.6°

H: 11°,

V: 9°

H: 7.7°,

V: 5.8°

Detection Distance

(Humans: 1.8×0.5m)

235 m

(771.7 ft)

441 m

(1,446.9 ft)

734 m

(2,408.1 ft)

1,028 m

(3,373 ft)

1,469 m

(4,8120 ft)

Detection Distance

(Vehicles: 4×1.4m)

722 m

(2,368.8 ft)

1,353 m

(4,439 ft)

2,255 m

(7,398 ft)

3,157 m

(10,358 ft)

4,510 m

(14,797 ft)

Recognition Distance

(Humans: 1.8×0.5m)

59 m

(193.6 ft)

110 m

(360.9 ft)

184 m

(603.7 ft)

257 m

(843.2 ft)

367 m

(1,204.1 ft)

Recognition Distance

(Vehicles: 4×1.4m)

180 m

(590.6 ft)

338 m

(1108.9 ft)

564 m

(1850.4 ft)

789 m

(2,588.6 ft)

1,127 m

(3698 ft)

Identification Distance

(Humans: 1.8×0.5m)

29 m

(95.1 ft)

55 m

(180.4 ft)

92 m

(301.8 ft)

129 m

(423.2 ft)

184 m

(603.7 ft)

Identification Range

(Vehicles: 4×1.4m)

90 m

(295.3 ft)

169 m

(554.5 ft)

282 m

(925.2 ft)

395 m

(1,295.9 ft)

564 m

(1850.4 ft)

* The table is only for reference and the performance may vary according to different environment.

* The optimal detection, recognition, and identification distances are calculated according to Johnson’s Criteria.

Detection Range: In order to distinguish an object from the background, the object must be covered by 1.5 or more pixels.

Recognition Range: In order to classify the object (animal, human, vehicle, etc.), the object must be covered by 6 or more pixels.

Identification Range: In order to identify the object and describe it in details, the object must be covered by 12 or more pixels.

Main Stream

704×576 @25/30fps

Sub Stream

CIF @25/30fps

Bit Rate Control

CBR/VBR

Bit Rate

Main stream: 100Kbps to 6Mbps,

Sub stream: 10Kbps to 1.5Mbps

Region of Interest

Off/On (8 Zone, Rectangle)

Smart Encode

Support

Audio Compression

G711: 64kbps, RAW_PCM: 128kbps

Smart Function

Smart Alarm

Motion detection, Disk alarm, I/O alarm, IVS alarm, Temperature detection alarm

Smart Detection

Support human/vehicle detection

Intelligent Analysis

Intrusion, Single line crossing, Double line crossing, Loitering, Wrong-way, Enter area, Leave area

(these functions support accurate detection of human/vehicles), People   counting

Temperature Detection

Temperature Detection

3 temperature measurement rule types, 20 rules in total, 1 full screen, 19 others (spot, areas, line).

Temperature Alarm

Over temperature alarm, Temperature difference  alarm

Accuracy

±2℃ / ±2%

Response Time

≤ 30ms

Temperature Range

-20°C to 150°C (-4°F to 302°F)

Network

Protocols

IPv4/IPv6, HTTP, HTTPS, RTSP/RTP/RTCP, TCP/UDP, DHCP, DNS, DDNS, PPPoE, FTP, SMTP, 802.1x, SNMP

Interoperability

ONVIF, CGI, SDK

Max. User Access

10 Users

Web Viewer

<IE11, Chrome, Firefox, Microsoft Edge

Web Language

English, Chinese, Polish, Italian, Portuguese, Spanish, Russian, French, Czech, Hungarian

Interface

Network Interface

1 Ethernet (10/100 Base-T) RJ-45 Connector

Audio Interface

1ch Audio In, 1ch Audio Out

Alarm Interface

2ch Alarm In, 2ch Alarm Out

RS-485

Support

CVBS Interface

BNC, 75ohm

Reset Button

Support

SD Card Slot

Built-in, up to 128GB

General

Power Supply

12VDC/24VAC/PoE

Power Consumption

Max 5W

Working Temperature

-40°C to 60°C (-40°F to 140°F)

Storage Conditions

0 to 90% RH

Certifications

CE /FCC

Ingress Protection

IP66

Casing

Metal

Dimensions

φ110 × 388 mm (φ4.33 × 15.28 inch)

Net Weight

1.8 kg (3.97 lb) with 15mm lens

Temperature Measurement

(Object: 1 × 1m)

94 m

(308.4 ft)

176 m

(577.4 ft)

294 m

(964.6 ft)

412 m

(1,351.7 ft)

588 m

(1,929.1 ft)

Temperature Measurement

(Object: 0.2 × 0.2m)

19 m

(62.3 ft)

35 m

(114.8 ft)

59 m

(193.6 ft)

82 m

(269 ft)

118 m

(387.1 ft)

Fire Detection

(Object: 1 × 1m)

235 m

(771 ft)

441 m

(1,446.8 ft)

735 m

(2,411.4   ft)

1,029 m

(3,376 ft)

1,471 m

(4,826   ft)

Fire Detection

(Object: 0.2 × 0.2m)

47 m

(154.2 ft)

88 m

(288.7 ft)

147 m

(482.3 ft)

206 m

(675.9 ft)

294 m

(964.6 ft)

Note: The table is for reference only. The distances within it are subject to actual   conditions including atmospheric conditions, target size, the installation site, and more.
